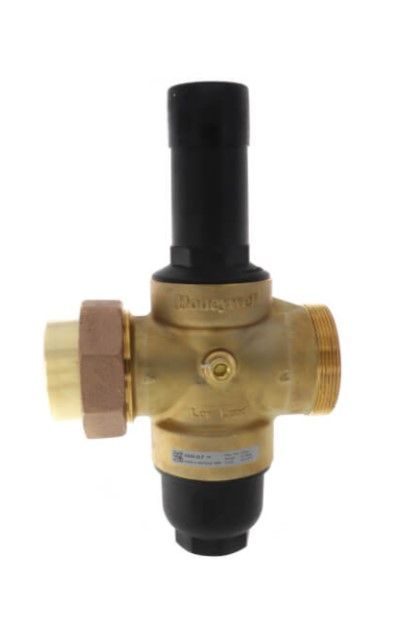

Honeywell DS06-105-DUS-LF 2" Double Union Sweat Pressure Regulating Valve

Honeywell DS06-105-DUS-LF 2" Double Union Sweat Pressure Regulating Valve

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).


Features

• Built-In Dial-Set - no gauge is needed to install or set static pressure.
• Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
• Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
• Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
• 1/4" NPT tap accessible from both sides to validate output
• Built in strainer to simplify maintenance
• Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant

Specifications

• Dimensions: 8 5/8" High x 6" Long
• Operating Temperature Range: 140 F Maximum
• Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
• Outlet Pressure Adjustment Range: 25-90 PSI
• Max. Inlet Pressure Rating: 250 PSI
• Gauge Tap: 1/4 in. NPT (two, one on each side of body).
• Reducing Ratio: 10:1 Maximum
• Union Fittings: Double-Union Threaded
• Approvals, ASSE: Certified 1003-2027
• Approvals, IAPMO: Listed
