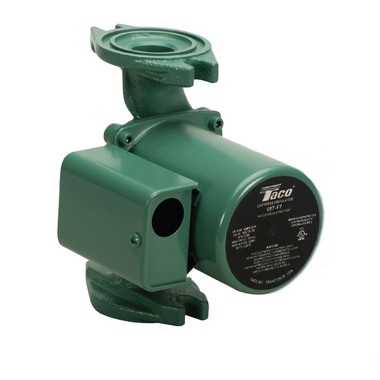

Taco 007-F5 Cast Iron Cartridge Circulator Pump 1/25 HP

Hover over image to zoom

  • Image 1
SKU:
TACO1
Availability:
Usually ships within 24 hours

Temporarily Out of Stock

 Product Description

Taco 007-F7 Cartridge Circulator Pump

The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator. It is designed for quiet operation in Hydronic Heating, Radiant Heating, Hydro-Air Fan Coils, Indirect Water Heating, Chilled Water Cooling, and Domestic Water Systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Ideal for a wide range of applications.

Features
  • Standard High Capacity Output
  • Compact Design
  • Quiet, Efficient Operation
  • Unique Replaceable Cartridge Design – Field Serviceable
  • Direct Drive-Low Power Consumption
  • Self-Lubricating
  • No Mechanical Seal
  • Unmatched Reliability --Maintenance Free
  • Universal Flange-to-Flange Dimensions
  • Cast Iron or Bronze Construction

Typical Applications

  • Hydronic Heating
  • Radiant Heating
  • Hydro-Air Fan Coils
  • Indirect Water Heating
  • Chilled Water Cooling
  • Domestic Water Systems

Performance Data

  • Flow Range: 0-20 GPM
  • Head Range: 0-11 Feet
  • Minimum Fluid Temperature: 40º F (4º C)
  • Maximum Fluid Temperature, Cast Iron: 240º F (115º C)
  • Maximum Fluid Temperature, Bronze: 230º F (110º C)
  • Maximum Working Pressure: 125 PSI
  • Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flanged

Electrical Data

  • 115 Volts
  • 60 Hz
  • 1 Phase
  • .70 Amps
  • 3250 RPM
  • 1/25 HP
