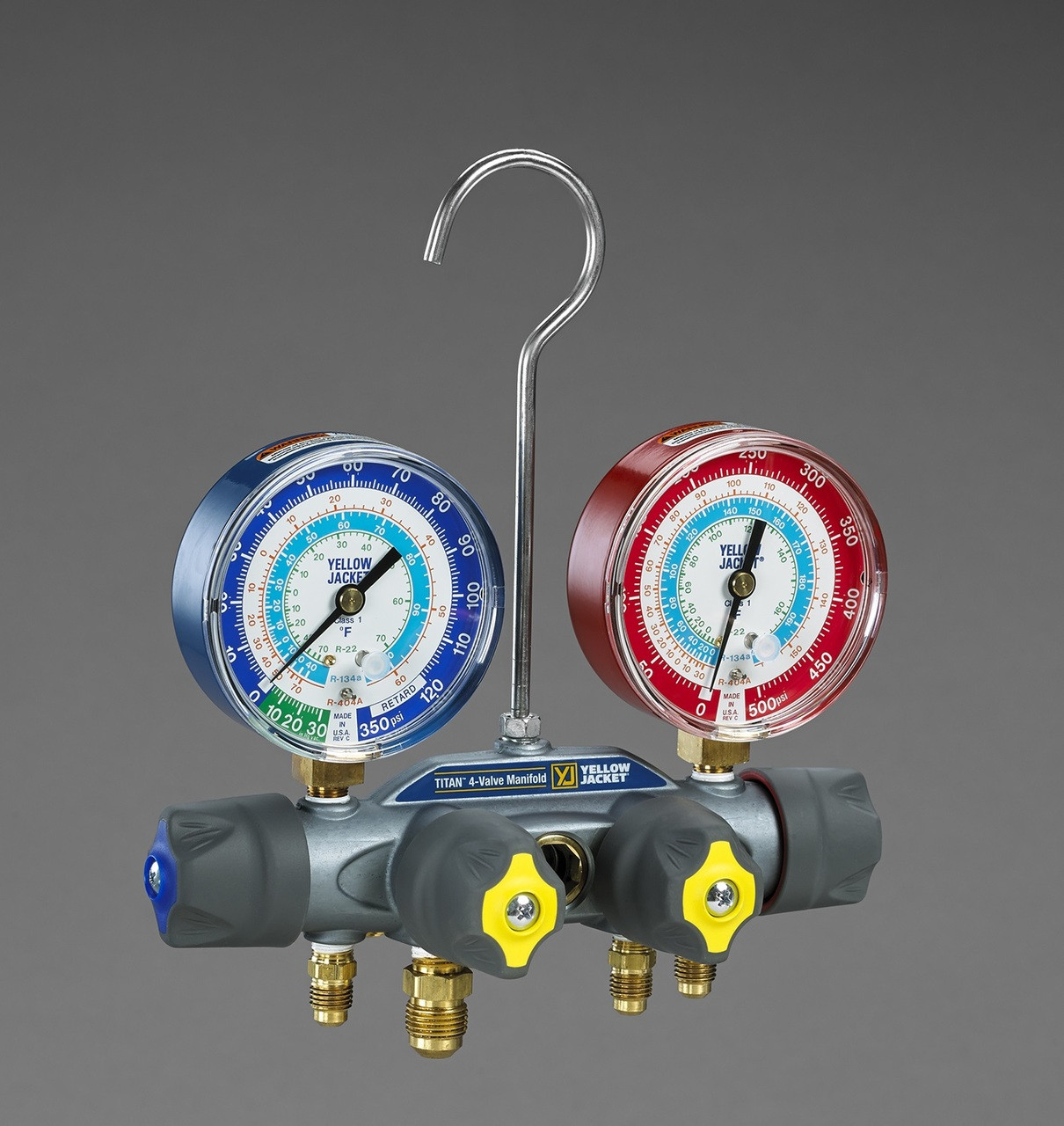

Yellow Jacket 49983 Titan 4 Valve Manifold R22/R134A/404A

Forged aluminum alloy body makes this unit lightweight for handling ease with the durability and reliability required for repeated use.

• Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
• 3/8″ Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″)
• Large, easy-to-read 3-1/8″ (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
• Front access for easy field recalibration
• Double “O” ring piston for reliability and long service life
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
• Contoured easy-grip handles for positive control; color-coded for ready identification
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Optional protective gauge boots available
• Heavy duty hook won’t pull out
• Also available with 3-1/2″ (80 mm) red and blue liquid-filled gauges
• Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
• R-22, R134A, and 404A
• Made in the USA
