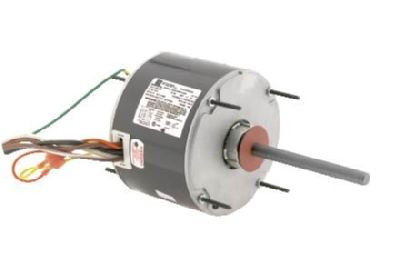

US Motors 1861 Condenser Fan Motor 1/3 HP 1075 RPM 208-230V

Image 1

Hover over image to zoom

  • Image 1
SKU:
1861 USM

Temporarily Out of Stock

 Product Description



Features:

  • Reversible rotation
  • Thru bolt or band mounting
  • Water slinger on shaft
  • Serrated end caps on vertical shaftupmodels
  • Full six inch shaft length
  • Up/down design
  • All angle sleeve or ball bearings
  • Double full flatted shaft



Specifications:

  • 5-1/2" Diameter
  • Class B insulation
  • Single phase, 60 Hertz
  • Automatic thermal overloadprotected
  • Fan duty, continuous, air over
  • 26 inch leads
  • 7.5mfd capacitor required



Cross-brand Interchanges:

MARS
GEAO SmithEmersonFascoMarathonWagner
PackardYORK/ Source-1/ Coleman
Rheem/ Ruud/ ProtechCarrier/ Totaline/ RCDNordyne/ Partner's Choice
10729 3729 FSE1036S 1861 D908 X413 WG840729 43729 S1-FHM3729 51-24437-29 P257-8729 0



Motor Power 1/3 HP
RPM 1075
Speeds 1-Speed
Rotation Reversible
Phase 1
Voltage 208/230V
Hz 60
Frame 48
Run Capacitor 7.5/370
Motor Type PSC
Shaft Diameter 1/2"
Shaft Length (In.) 6-1/2
Enclosure Drip Proof
Mounting All Angle
Bearings -->
