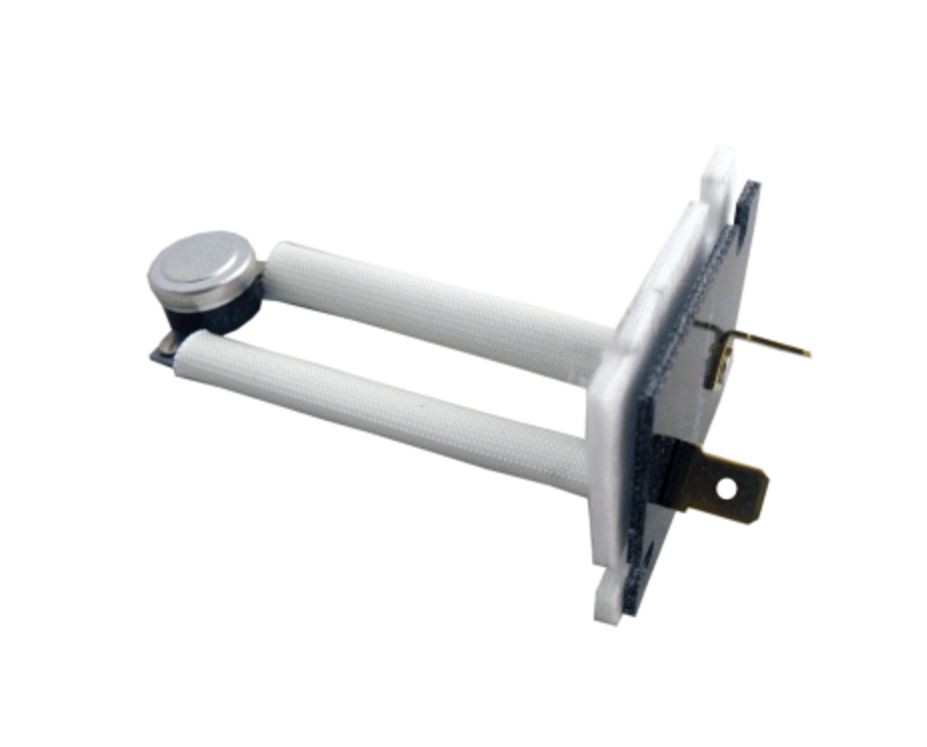

Supco SHL512 Open L170-20 Limit Switch

Hover over image to zoom

  • Image 1
SKU:
SUPC77
Availability:
Usually ships within 24 hours

 Product Description

SHL512--PLENUM THERMOSTAT

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design. Thermostats open when temperature in the furnace plenum area is too high
Shuts down furnace until the temperature cools to an acceptable level
Close Temp. °F: 150; Open Temp. °F: 170;Width: 1.625";Height: 1.44"; Length: 3.12";

Features/Benefits

  • Economical

  • Direct OEM replacements

  • UL® recognized

  • CSA approved

  • L170-20 SPST

Specifications

Insertion Length:

3.12"

Board Height:

1.44"

Board Width:

1.625"

Close ( °F):

150 °F

Open (°F):

170°F

Applications

Plenum thermostats

Cross Reference

Replacement Part: 47-25350-06

Manufacturer :Lennox

Replacement Part: HH12ZB170

Manufacturer :Bryant
