RXGF-CB UPFLOW EXTERNAL BOTTOM FILTER RACK KIT

Image 1

Hover over image to zoom

  • Image 1
SKU:
RXGFCB

 Product Description

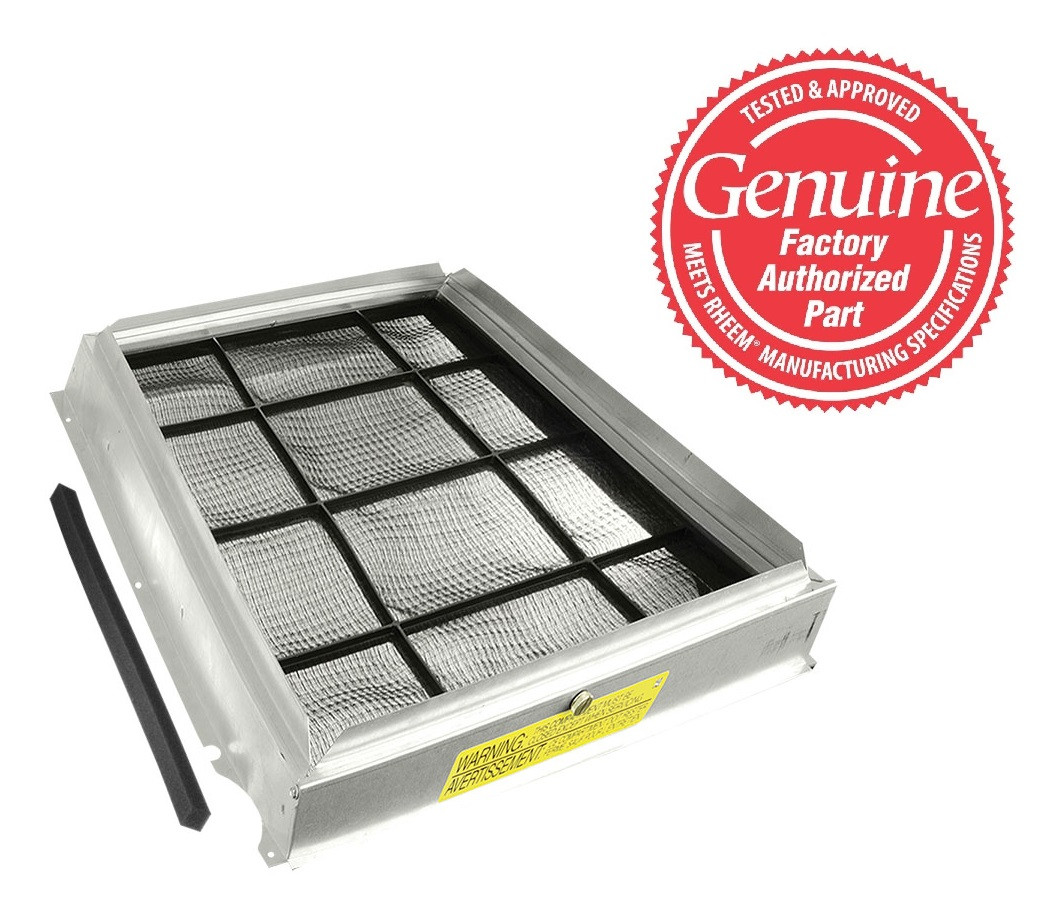

RXGF-CB UPFLOW EXTERNAL BOTTOM FILTER RACK KIT

Typical Application: Bottom Mount - Gas Upflow
Insulation: No
Duct Configuration: Through
Air Opening Inlet Dimensions Width (in.): 21-3/4 - 11-1/4
Air Opening Inlet Dimensions Length (in.): 24-1/4
Air Opening Outlet Dimensions Width (in.): (23-7/8 - 13-3/8)
Air Opening Outlet Dimensions Length (in.): 24-1/4
Housing Overall (Outside) Dimensions Width (in.): 24-1/2 - 14
Housing Overall (Outside) Dimensions Length (in.): 28-1/4
Housing Overall (Outside) Dimensions Height (in.): 3-1/2
Door Type: Lift-Out
Door Opening Dimension and Location: 24-1/2, Side
Number of Filters per Unit: 1
Replacement Media Thickness (in.): 1
Replacement Media Dimensions - Nominal (in.): (14 x 24) - (24 x 24)
Replacement Media Dimensions - Actual (in.): (13-3/4 x 23-3/4) - (23-3/4 x 23-3/4)
