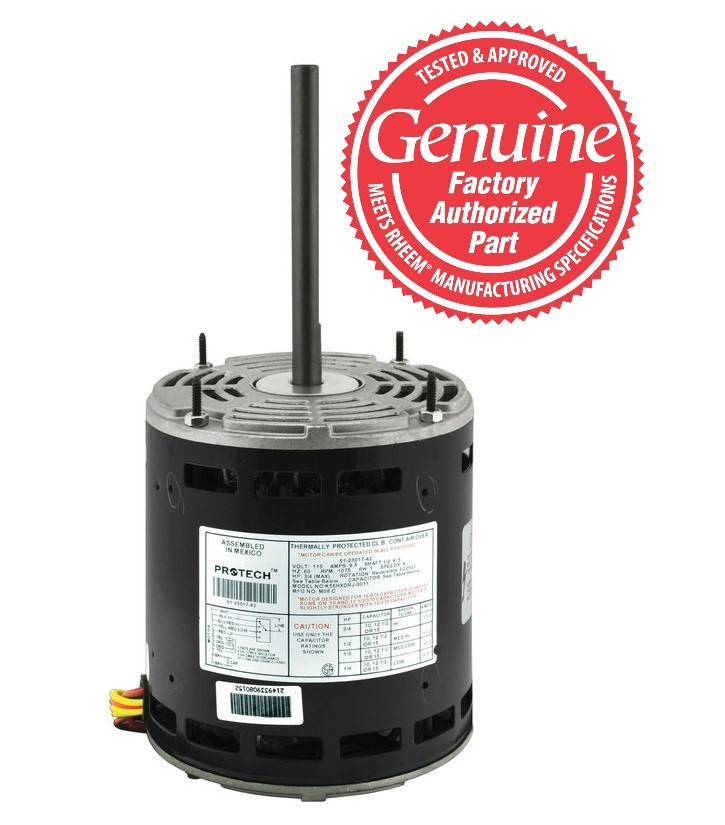

Rheem Ruud TripSaver 51-23017-42 1/4-3/4HP 115V 1075RPM Blower Motor

Overview:

Protech is the parts division for Rheem Manufacturing, offering professional quality HVAC parts & supplies for your equipment. Not only do Protech parts fit all your Rheem equipment needs, but hundreds of Protech parts have been used as replacement parts in many top-brand heating & air conditioning systems.

Please note that these products typically require professional installation by a qualified/certified HVAC technician. Always consult the parts manual issued with your equipment to match the specification requirements of your system. Motors that have been installed cannot be returned.

Research your purchase carefully and ensure the part matches your requirements.

51-23017-42 FOUR SPEED REVERSIBLE MOTOR CAN BE USED TO REPLACE MOST 115 VOLT FURNACE BLOWER MOTORS FROM 1/4 TO 3/4 HP BY CHANGING CAPACITORS AND SPEED.

Specifications:

• Horsepower & Speed: 1/4, 1/3, 1/2, or 3/4
• No. of Speeds: 4
• High Speed: 1075 RPM
• Electrical: 120V
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation: Reversible
• Capacitor: 10MFD/370V or 12.5MFD/370V or 15MFD/370V (depends on selected HP, see Specification Tab)
• Shaft Diameter: 1/2"
• Motor Body Diameter: 5-5/8"
• Overall Shaft Length: 5"
• Overall Motor Length: 10-13/16"
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive

Product Usage:

• This part is used in, but not limited to the following models: RGDD-10, 12, RGDE-07EM, 10ER, 12, 14, RGJA, RGEB, RGEC-09, 10, 12, RGED 09, 10, 12, RGKC 09, 10, 12, ROBF, ROPD, ROPF, 80BD, 80BF, RGVG, RGEC, RGKB 09, 10, 12, RGKC, RGSA, 90RJ, 90RS, 90RT, 90TS, RGRA, RGRB, RGTA, RGTK, RGDC-12, 14 (E-J)

Product History:

• Replaces the following part #'s: 51-22687-01, 51-24043-01, 51-23017-41, 51-21459-02, 51-24146-01, 51-19055-01, 51-26192-01, 51-22121-01, 51-18716-11, 51-20825-01, 51-18716-01, 51-20815-01, 51-21459-01, 8101-5639, 20055001, 51-18716-02, 8101-5510, 51-20816-01, 8101-5594, 51-22121-02, 51-19336-01, 51-26150-01, 51-18716-11
