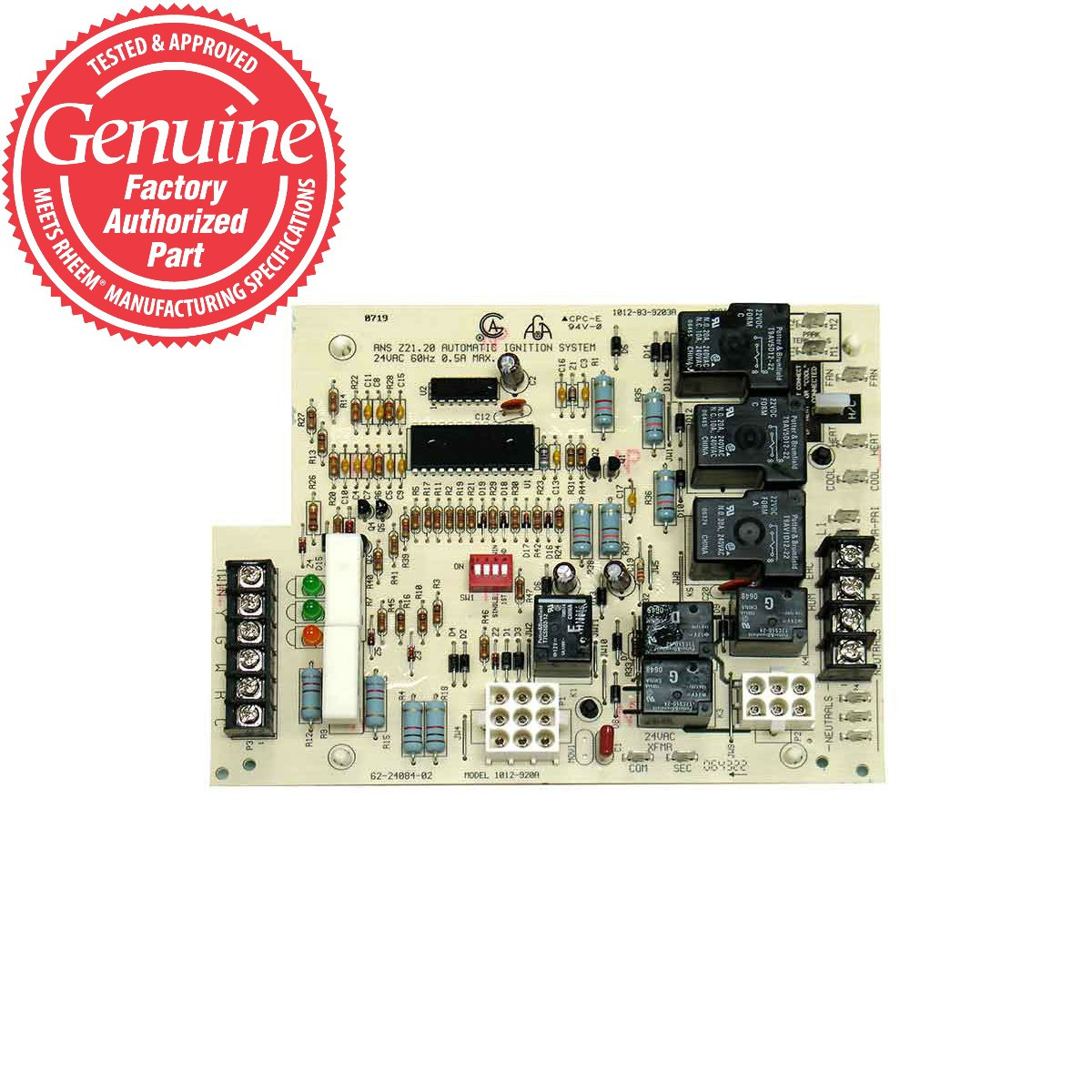

Rheem Ruud 62-24084-82 Ignition Module Control Board

Rheem/Ruud 62-24084-82 - Integrated Furnace Control Board

Used In The Following Rheem / Ruud Model Numbers:

• RGDG- BK,BS,CA,CE,CV,CM,CY,CU,DB,BR,BT,CD,CW,CS,DA,CX,CT,DC,DH,DF,DG
• SGDG- BS,CA,CE,CV,CM,CY,CU,DB,BR,BT,CD,CW,CS,DA,CX,CT,DC,DH,DF,DG
• RGLG- CA,BS,CE,CM,CV,CU,CY,DB,BR,BT,CD,CS,CW,DA
• RGLH- CA,CE,CV,CY,DB,BT,CD,CW,DA,DC,DH,EU,DF,DG,EV
• RGPH- BS,CA,CE,CV,CY,DB,BR,BT,CW,DA,CX,DC,DH,EU,EV,DF,DG
• RGVG- CA,BS,CE,CM,CV,CU,CY,DB,BR,BT,CD,CS,CW,DA,
• RGVH- CA,CE,CV,CY,DB,BT,CW,DA,CX,DC,DH,EU,DF,DG,EV,
• RGDJ- EU,EV,
• RGLJ- EU,EV,
• RGPJ- EU,
• RGRA- DC,DH,DF,DG,
• RGSA- DC,DF,
• RGTA- DC,DH,DF,DG,
• RGVJ- EU,EV,
• 80LJ- EU,EV,
• 80PJ- EU,EV,
• RGPJ- EV,
• UGDG- BK,BS,CA,CE,CV,CM,CY,CU,DB,BR,BT,CD,CW,CS,DA,CX,CT,DC,DH,DF,DG
• UGLG- CA,BS,CE,CM,CV,CU,CY,DB,BR,BT,CD,CS,CW,DA
• UGLH- CA,CE,CV,CY,DB,BT,CD,CW,DA,DC,DH,EU,DF,DG,EV
• UGPH- BS,CA,CE,CV,CY,DB,BR,BT,CW,DA,CX,DC,DH,EU,EV,DF,DG
• UGVG- CA,BS,CE,CM,CV,CU,CY,DB,BR,BT,CD,CS,CW,DA,
• UGVH- CA,CE,CV,CY,DB,BT,CW,DA,CX,DC,DH,EU,DF,DG,EV,
• UGDJ- EU,EV,
• UGLJ- EU,EV,
• UGPJ- EU,
• UGRA- DC,DH,DF,DG,
• UGSA- DC,DF,
• UGTA- DC,DH,DF,DG,
• UGVJ- EU,EV,
• UGPJ- EV



Gas Code Is The First Two Letters Of The Serial Number

Replaces The Following Rheem / Ruud Part Numbers:

• AS-58494-13, 62-24084-81, 62-24046-01, 62-24044-91, 62-24044-01, 62-22694-83,
• 62-22737-88, 62-22737-06, 62-22737-87, 62-22694-91, 62-22737-10, 62-24084-71,
• 62-24084-92, 62-22694-01, 62-24084-01, 62-24084-91, 62-22737-08, 62-24044-81,
• 62-22737-07, 62-22694-82, 62-22694-11, 62-24045-01, 62-22694-02, 62-24084-02,
• 62-22694-03, 62-22694-12,  UTEC 1012-920A-I



Important Note: Flame Sensor Kit 62-24044-71 May Be Required To Be Ordered Separately For Furnaces Built Before F3294 (32nd Week Of 1994). Date Code Is Located In The Units Serial Number (Sample Serial Number: (X=Letter, 9=Number) XX9X999F3294XXXX) Please Reference The Serial Number For Your Equipment

All Controls Should Be Installed By A Licensed Professional.

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE!
