Rheem Protech 62-24164-01 Ignitor Direct Spark Ignition (DSI

Hover over image to zoom

  • Image 1
SKU:
622416401 RHE

 Product Description

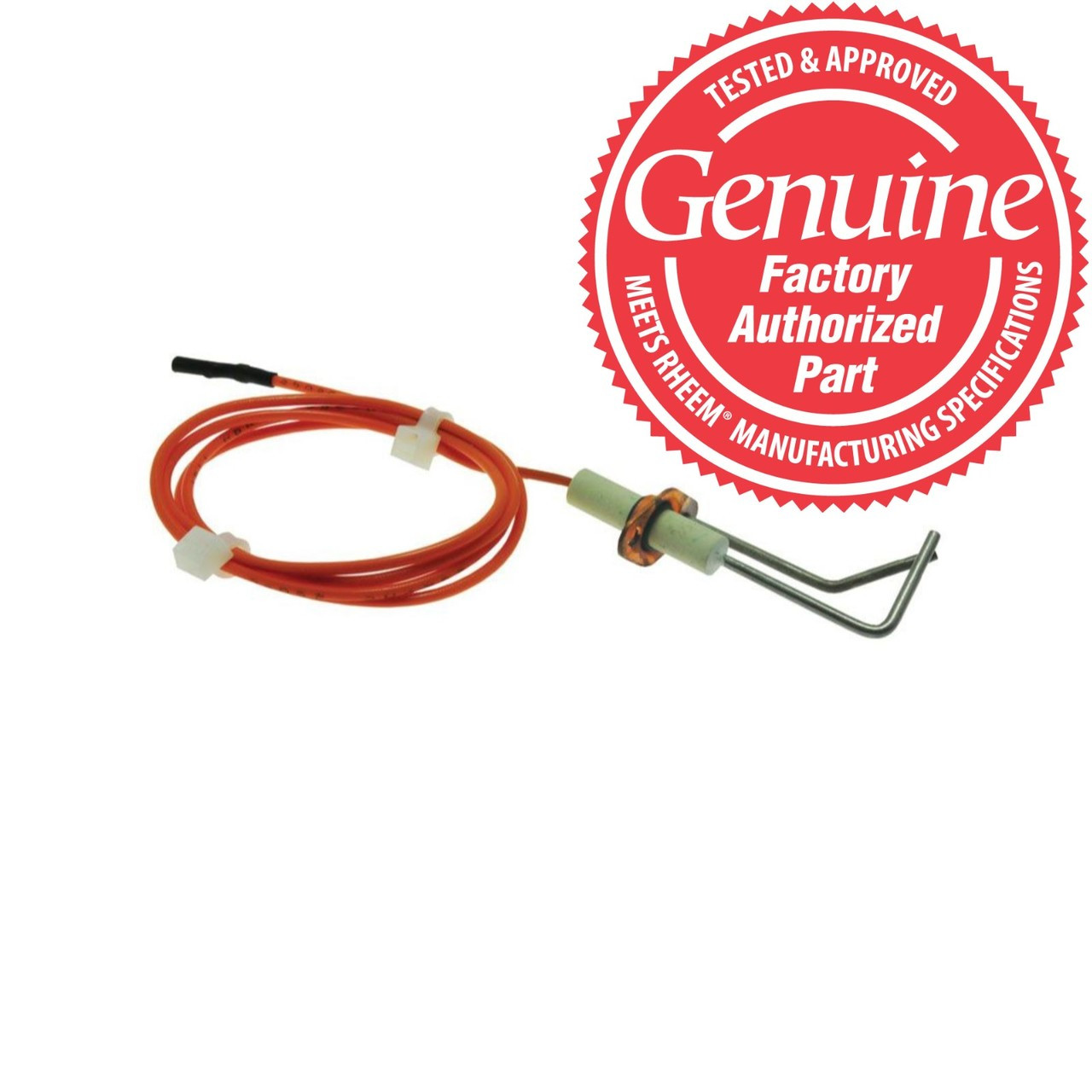

Rheem/Ruud/Protech 62-24164-01 Direct Spark Igniter (DSI) With 35" Cables

Technical Data:

Ignitor Type:Direct Spark

Element Material:Kanthal

Length - Mounting Flange to Ignitor Tip (in.):2-1/8

Length - Spark Electrode Offset (in.):1-3/16

Angle - Spark Electrode Offset (degrees):83

Length - Ground Electrode Offset (in.):13/16

Angle - Ground Electrode Offset (degrees):135

Spark Gap (in.):1/8

Wire Length (in.):35



Termination:0.084 in. diameter round pin terminal







Used in the following Rheem / Ruud model numbers:

  • SGDG-Models With Gas Code: EY,
  • RGLH-Models With Gas Code: FD, FE, FF, FG, FS, FU
  • RGLK-Models With Gas Code: EX, FJ, FM, FO
  • RGLL-Models With Gas Code: FC, FL, FR
  • RGLN-Models With Gas Code: FT, FU
  • RGLQ-Models With Gas Code: FJ, FO, GO, GW
  • RGLR-Models With Gas Code: FC, FL, FR, GR, GX
  • RGPH-Models With Gas Code: FD, FE, FF, FG, FU
  • RGPK-Models With Gas Code: EX, FJ, FM, FO
  • RGPL-Models With Gas Code: FC, FL, FR
  • RGPN-Models With Gas Code: FD, FS, FT, FU, FV
  • RGPP-Models With Gas Code: GH, GJ, GK
  • RGPQ-Models With Gas Code: FJ, FO, GO, GW
  • RGPR-Models With Gas Code: FC, FL, FR, GR, GX
  • 80LS-Models With Gas Code: GH
  • 80PS-Models With Gas Code: GH, GJ, GK
  • RGLE-Models With Gas Code: GZ
  • RGLS-Models With Gas Code: GH
  • RGLT-Models With Gas Code: HV, HT
  • RGPE-Models With Gas Code: GZ
  • RGPS-Models With Gas Code: GH, GJ, GK
  • RGPT-Models With Gas Code: HV, HT
  • SGPG-Models With Gas Code: EY
  • SGPN-Models With Gas Code: GS
  • UGDG-Models With Gas Code: EY,
  • UGLH-Models With Gas Code: FD, FE, FF, FG, FS, FU
  • UGLK-Models With Gas Code: EX, FJ, FM, FO
  • UGLL-Models With Gas Code: FC, FL, FR
  • UGLN-Models With Gas Code: FT, FU
  • UGLQ-Models With Gas Code: FJ, FO, GO, GW
  • UGLR-Models With Gas Code: FC, FL, FR, GR, GX
  • UGPH-Models With Gas Code: FD, FE, FF, FG, FU
  • UGPK-Models With Gas Code: EX, FJ, FM, FO
  • UGPL-Models With Gas Code: FC, FL, FR
  • UGPN-Models With Gas Code: FD, FS, FT, FU, FV
  • UGPP-Models With Gas Code: GH, GJ, GK
  • UGPQ-Models With Gas Code: FJ, FO, GO, GW
  • UGPR-Models With Gas Code: FC, FL, FR, GR, GX
  • UGLE-Models With Gas Code: GZ
  • UGLS-Models With Gas Code: GH
  • UGLT-Models With Gas Code: HV, HT
  • UGPE-Models With Gas Code: GZ
  • UGPS-Models With Gas Code: GH, GJ, GK
  • UGPT-Models With Gas Code: HV, HT
  • UGPG-Models With Gas Code: EY
  • UGPN-Models With Gas Code: GS

*Gas Code Is The First Two Letters Of The Units Serial Number.

All Controls Should Be Installed By A Licensed Professional.

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE!
