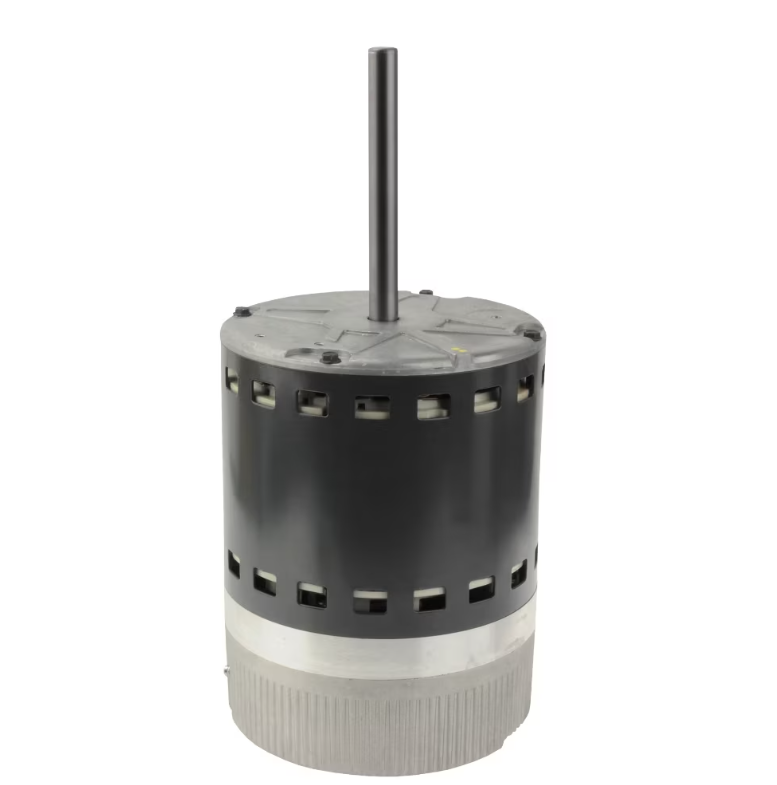

Loading... Please wait...Rheem 51-104305-14 Motor - Eon (ECM) - 3/4 hp
Found in residential HVAC furnaces, air handlers, commercial variable air volume systems, and fan filter units, these PROTECH™ ECM Eon Blower Motors serve as a reliable blow motor. Eon's lightweight and compact design, coupled with variable speed ECM technology, ensures straightforward integration into existing systems, compatible with the ECM 2.3 motor blower.
| Motor Type: | ECM (Eon) |
|---|---|
| HP: | 3/4 |
| No. of Speeds: | Variable |
| Input Voltage (V): | 120 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Frequency (Hz): | 50 |
| Frequency (Hz): | 60 |
| Shaft Diameter (in.): | 1/2 |
| Motor Body Diameter (in.): | 5-5/8 |
| Keyed/Flat Shaft Length (in.): | 4 |
| Overall Shaft Length (in.): | 4-1/2 |
| Motor Body Length (in.): | 7-1/4 |
| Overall Motor Length (in.): | 11-13/16 |
| Mounting: | Shell-band |
| Frame Size: | 48 |
| Bearing Type: | Ball |
| Application: | Blower |
| Drive Type: | Direct Drive |
1 year
