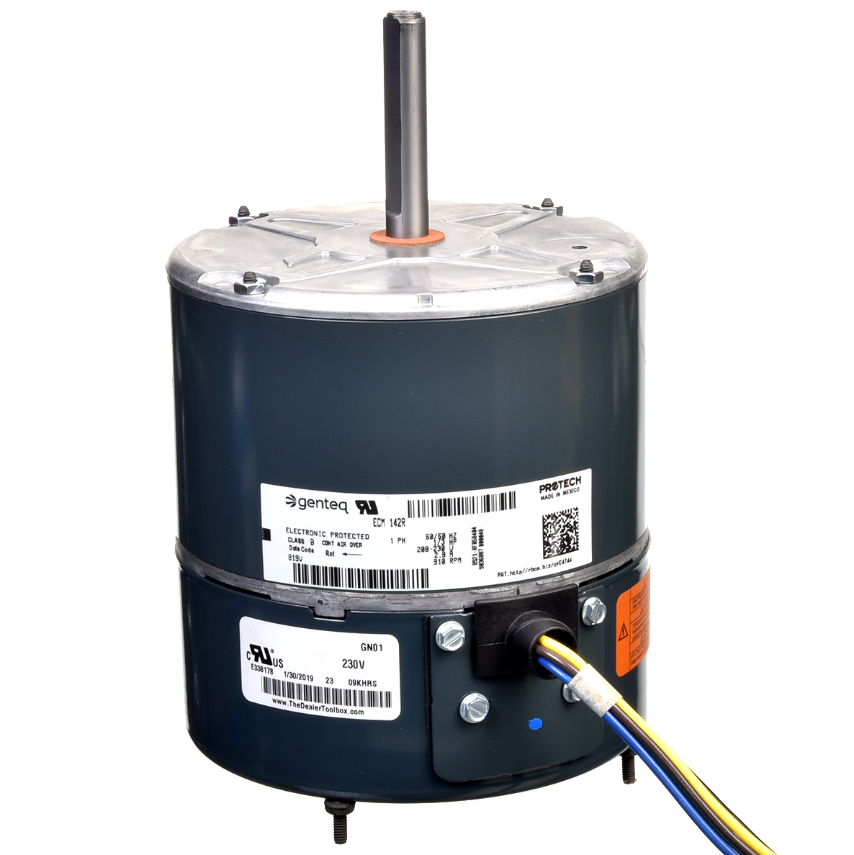

Rheem 51-102728-23 1/3HP 208/230/1 Motor - ECM (Outdoor)

Image 1

Hover over image to zoom

  • Image 1
SKU:
5110272823

 Product Description

Rheem 51-102728-23 1/3HP 208/230/1 Motor - ECM (Outdoor)

  • Variable speed operation
  • Brings the benefits of ECM to high voltage applications without the need of a step-down transformer partnered with a standard voltage ECM
  • Ball bearings
  • OEM genuine factory authorized part
  • 1/3 HP
  • 1 Phase
  • 208/230V
Motor Type: ECM - Not Programmable
HP: 1/3
No. of Speeds: Variable
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 50
Frequency (Hz): 60
Rotation Direction (OSE): CCW
FLA at 208V (A): 2.8
FLA at 230V (A): 2.8
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 2-1/4
Overall Shaft Length (in.): 2-5/8
Motor Body Length (in.): 6
Overall Motor Length (in.): 9-1/16
Mounting: Shell-band
Mounting: Thru-bolt
Frame Size: 39
Bearing Type: Ball
Application: Condenser
Drive Type: Direct Drive
Model: Part: Page:
RAPM 51-102728-11 Fan Group
RPQL 51-102728-11 Fan Group
15PJL 51-102728-11 Electrical-Fan Group
RHP15410A 51-102728-11 Electrical-Fan Group
