Condenser Motor - 1/3 hp 208-230/1/60 (1075 rpm/1 speed)
Hover over image to zoom
Product Description

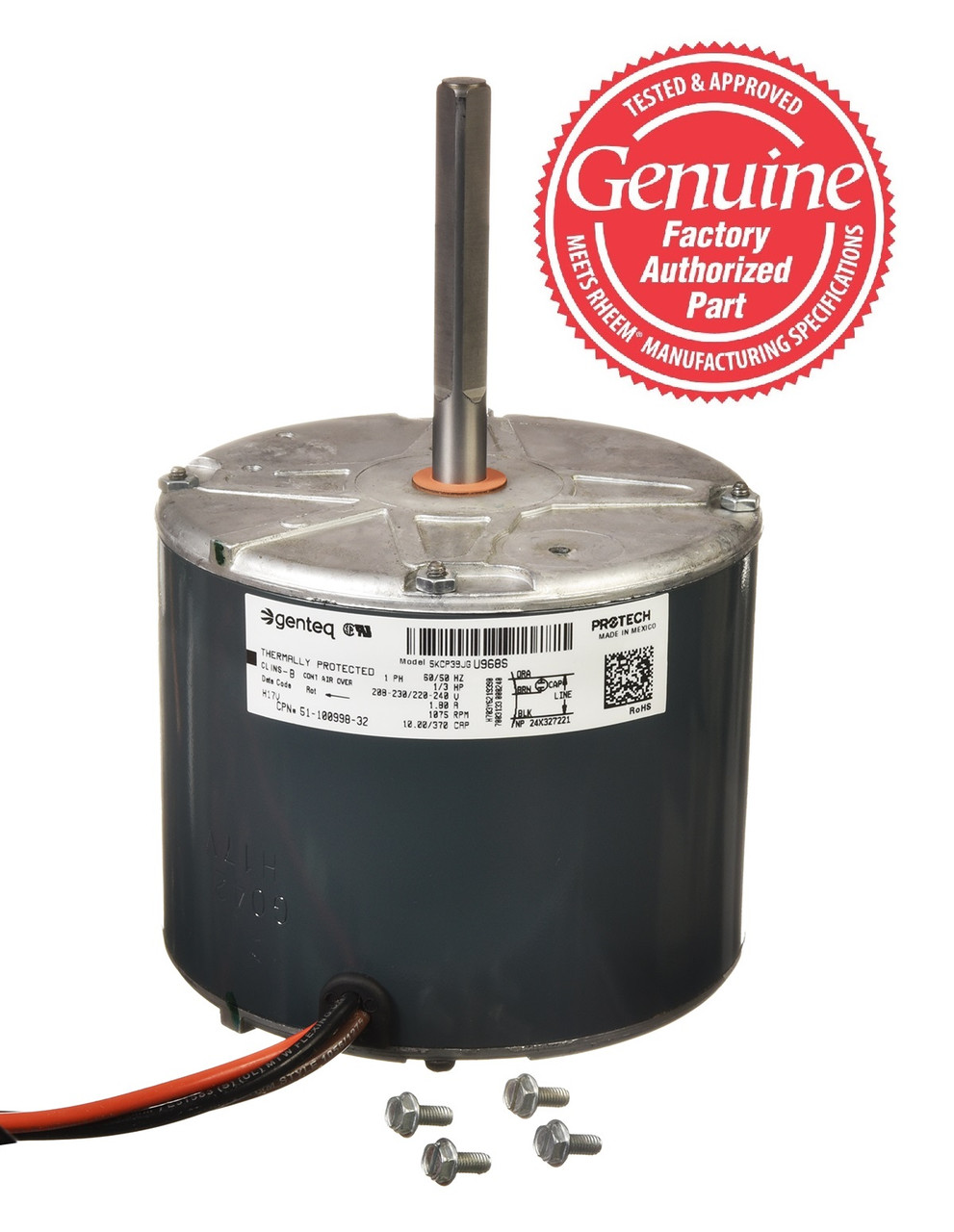

Rheem 51-100998-32 Condenser Motor - 1/3 hp 208-230/1/60 (1075 rpm/1 speed)
| HP: | 1/3 |
|---|---|
| No. of Speeds: | 1 |
| High Speed (RPM): | 1075 |
| Input Voltage (V): | 208 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Frequency (Hz): | 60 |
| Rotation Direction (OSE): | CCW |
| Run Capacitor (uF/V): | 10/370 |
| FLA at 208V (A): | 1.80 |
| LRA at 208V (A): | 4.00 |
| FLA at 220V (A): | 1.80 |
| LRA at 220V (A): | 4.00 |
| FLA at 230V (A): | 1.80 |
| LRA at 230V (A): | 4.00 |
| Shaft Diameter (in.): | 1/2 |
| Motor Body Diameter (in.): | 5-39/64 |
| Keyed/Flat Shaft Length (in.): | 2-3/4 |
| Overall Shaft Length (in.): | 3-21/32 |
| Motor Body Length (in.): | 4-3/4 |
| Overall Motor Length (in.): | 8-3/8 |
| Mounting: | Shell-band |
| Mounting: | End-boss |
| Frame Size: | 48 |
| Bearing Type: | Ball |
| Application: | Condenser |
| Drive Type: | Direct Drive |
| Model: | Part: | Page: |
|---|---|---|
| RAWD | 51-100998-13 | Fan Group 065-091 |
| RAWE | 51-100998-13 | Fan Group |
| RAWL | 51-100998-13 | Fan Group 078-240 |
| RJNA | 51-100998-13 | Fan Group |
| RJNL-A | 51-100998-13 | Fan Group |
| RJNL-C | 51-100998-13 | Fan Group 036-072 |
| RJPL-A | 51-100998-13 | Fan Group |
| RJPL-C | 51-100998-13 | Fan Group 036-060 |
| RKKL-B | 51-100998-13 | Electrical Group 072, Fan Group 072 |
| RKKN-B | 51-100998-13 | Electrical Group 072, Fan Group 072 |
| RKNA | 51-100998-13 | Electrical Group, Fan Group |
| RKNL-A | 51-100998-13 | Fan Group |
| RKNL-C | 51-100998-13 | Fan Group 036-060 |
| RKNN-A | 51-100998-13 | Fan Group |
| RKNN-C | 51-100998-13 | Fan Group 036-060 |
| RKPL-A | 51-100998-13 |
