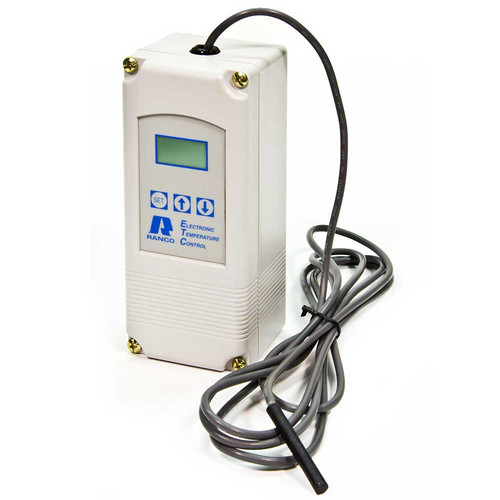

RANCO ETC-111000 Digital Cold Temperature Control

Hover over image to zoom

  • Image 1
SKU:
RANC1
Availability:
Usually ships within 24 hours

 Product Description

The Ranco ETC is a microprocessor based temperature controller suitable for switching 120Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications. This is a great universal controller for any application where switching 120Volts or temperatures outside that of a normal home thermostat is required. The sensor with an 8' foot cable and instructions are included with the unit.

Specifications:

    • Temperature Set point Range: -30 to 220F
    • Differential range: 1 to 30F
    • Input Voltage: 120VAC, 208, 240VAC
    • Pilot duty: 125VA at 120/208/240VAC
    • Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
    • Control Ambient Temperatures
      • Operating: -20 to 140F
      • Storage: -40 to 176F
    • Ambient humidity: 0 to 95% RH, non-condensing
    • Enclosure: NEMA 1
    • Dimensions: 6.52" high x 2.7" wide x 2.48" deep
    • Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02

Relay Output Ratings - NO (NC)

120V

208/240V

Full load amps

15 (5.8) A

8 (2.9 A)

Locked rotor amps

96 (34.8) A

48 (17.4) A

Resistive amps

15 (5.8) A

8 (2.9) A

Horsepower

1 (1/4) HP

1 (1/4) HP
