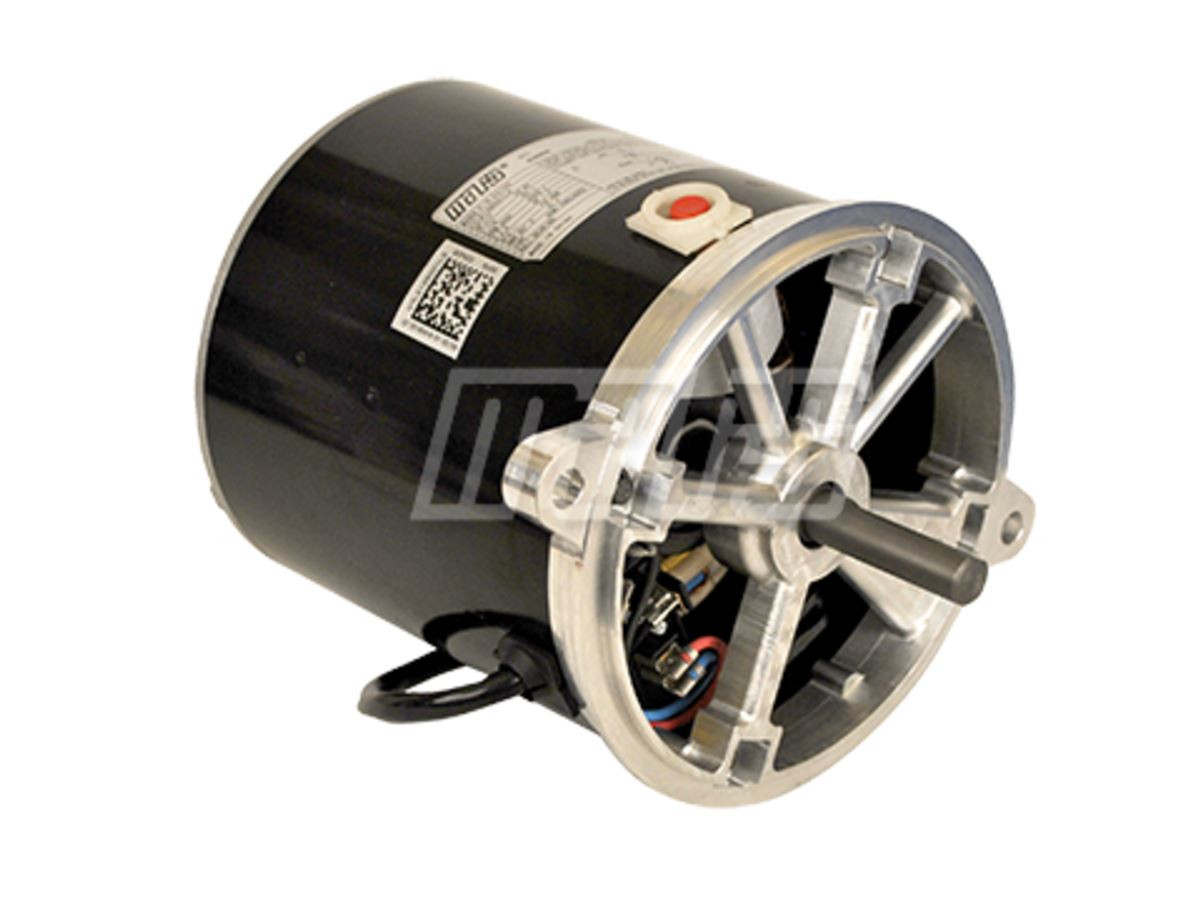

MARS 30100 Oil Burner Motor 1/7HP 115V 3450RPM 2.4A
1/7HP 115V 3450RPM OIL BURN
Ball Bearing
MARS Oil Burner Motors are replacement motors for residential and commercial oil burners, hot water pressure/steam cleaners and other applications where 48M or 48N flange mounting is required.
Features:
• All angle
• Split Phase and PSC
• Semi or totally enclosed
• Two bolt direct mounting for 48M and 48N
Specifications:
• Class “B” insulation
• Single phase, 60 Hz
• Continuous duty
• Manual reset overload protection
• Auto reset protection for PSC
• cULus
Motor Type Split Phase
Enclosure Semi Enclosed
H.P. (Max.) 1/7
Voltage 115
Speeds 1
Hz 60
Rotation REV
RPM Range 3450
NEMA Frame Size 48M
Phase Single
Standards cULus
FLA 2.4
Mount Two bolt direct mounting
Bearing Ball
Shaft Length Inches 1.75
Shaft Dia Inches 1/2
Thermal Protection Manual Reset
Ambient Deg C 40
Ins. Class Class B
Capacitor Included No
