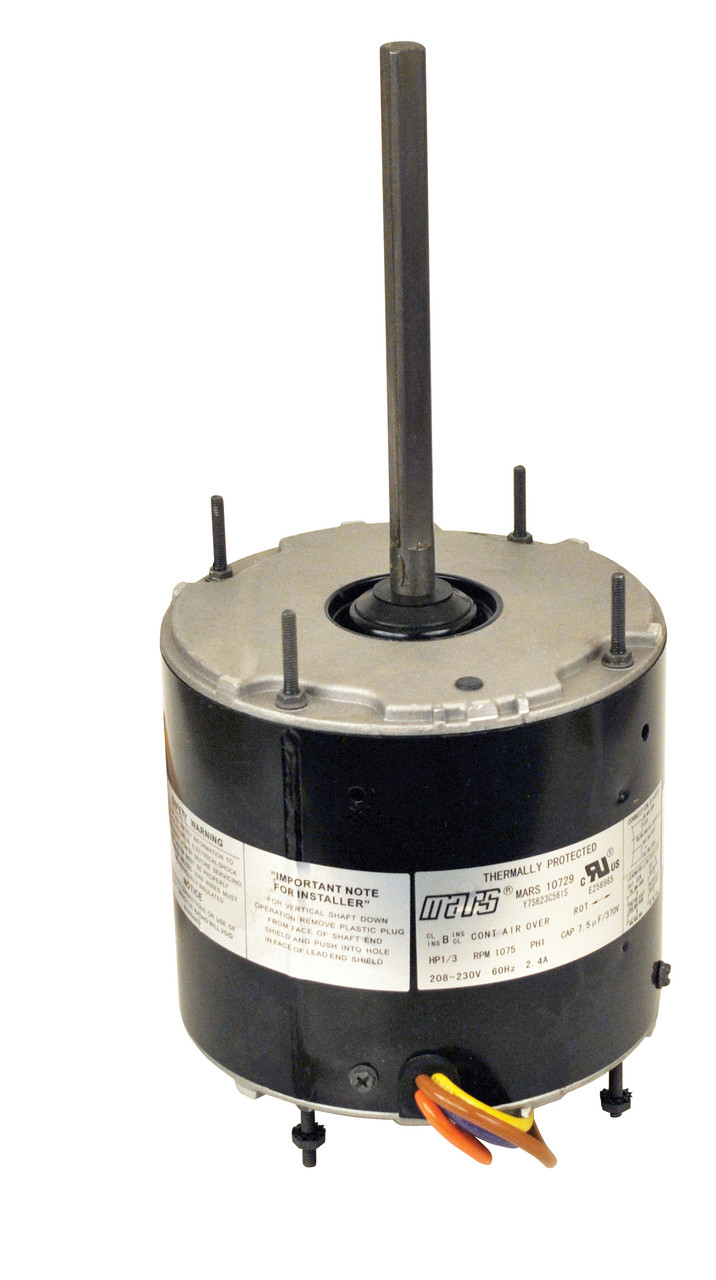

MARS 10728 Condenser Fan Motor 1/4 HP 1075 RPM 208-230V
Hover over image to zoom
Product Description
MARS 10728 Condenser Fan Motor 1/4 HP 1075 RPM 208-230V
1/4 HP 208-230/1/60 (1075 RPM) Mars Reversible Condenser Fan Motor 22728. MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat
pump applications.
Features:
Specifications:
1/4 HP 208-230/1/60 (1075 RPM) Mars Reversible Condenser Fan Motor 22728. MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat
pump applications.
Features:
- Reversible rotation
- Thru bolt or band mounting
- Water slinger on shaft
- Serrated end caps on vertical shaftupmodels
- Full six inch shaft length
- Up/down design
- All angle sleeve or ball bearings
- Double full flatted shaft
Specifications:
- 5-1/2" dia.
- Class B insulation
- Single phase, 60 Hertz
- Automatic thermal overloadprotected
- Fan duty, continuous, air over
- 26 inch leads
Cross-brand Interchanges:
| MARS | GE | AO Smith | Emerson | Fasco | Marathon | Wagner | Packard | YORK/ Source-1/ Coleman | Rheem/ Ruud/ Protech | Carrier/ Totaline/ RCD | Nordyne/ Partner's Choice |
|---|---|---|---|---|---|---|---|---|---|---|---|
22728 | 3728 | FSE1026S | 1860 | D909 | X412 | WG840728 | 43728 | S1-FHM3728 | 51-24437-28 | P257-8728 | 01-0161 |
Also replaces: Mars 03728, Mars 10728
