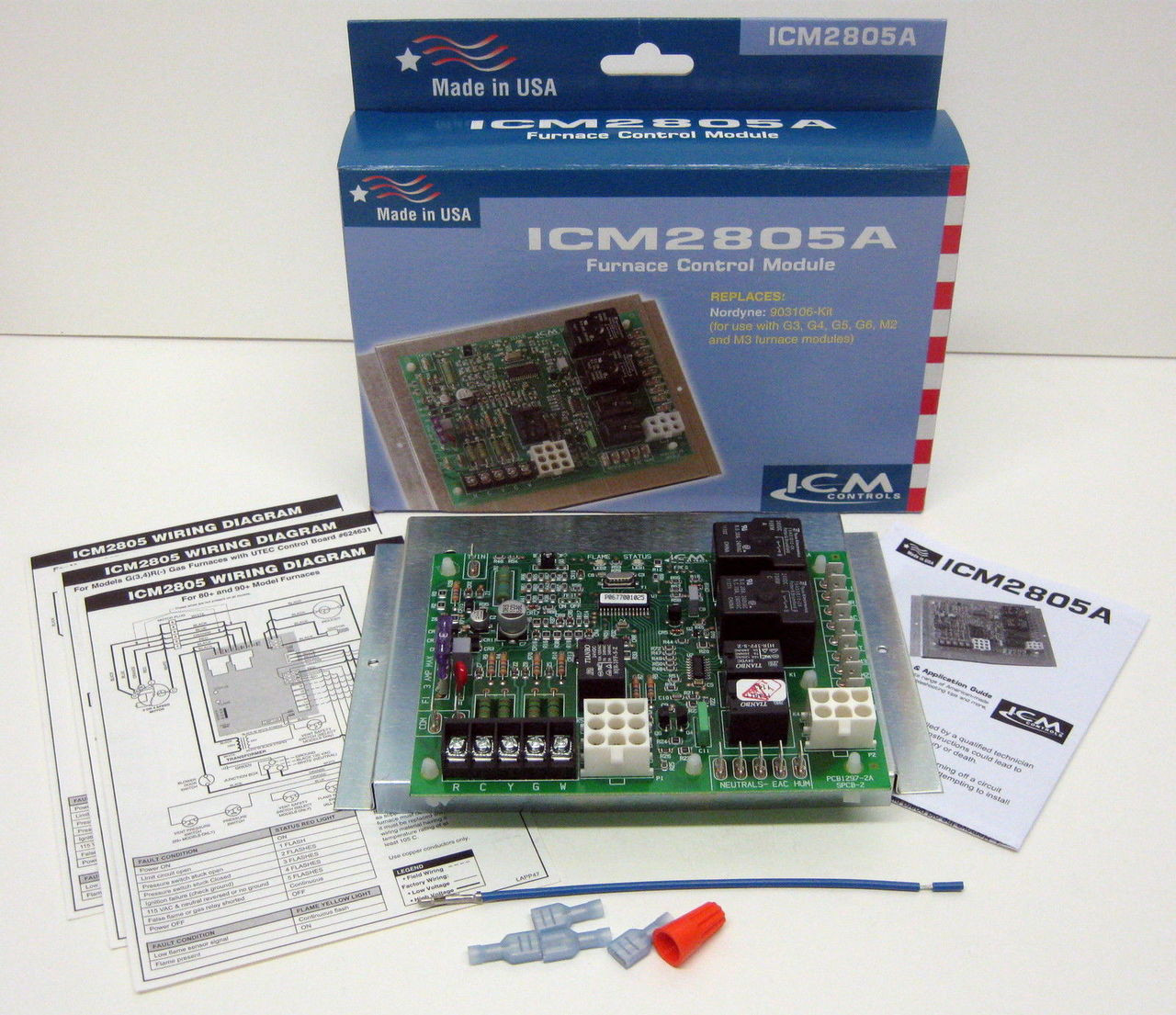

ICM2805 Miller Nordyne 903106 Furnace Control Board

Hover over image to zoom

  • Image 1
Usually ships within 24 hours

 Product Description

Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor

Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches.

Microprocessor-based precision, Twinning compatible with another ICM2805A furnace control

Diagnostic LEDs aid in testing and troubleshooting

Replaces: Nordyne 903106-Kit (for use with G3, G4, G5, G6, M2 and M3 furnace modules)

Replaces #'s 624591-C, 624591-D, 6246310



· Voltage Range: Line (98 to 132 VAC) @ 60Hz

· Ignitor: 5A, 120 VAC

· Cool Blower: 10A, 2HP, 240 VAC

· Heat: 5A, ½ HP, 250 VAC

· Inducer Blower: 4A, 120 VAC

· Gas Valve: 1A, 24 VAC

· Humidifier Motor: 0.5A, 24 VAC

· Electronic Air Cleaner: 1A, 120 VAC
