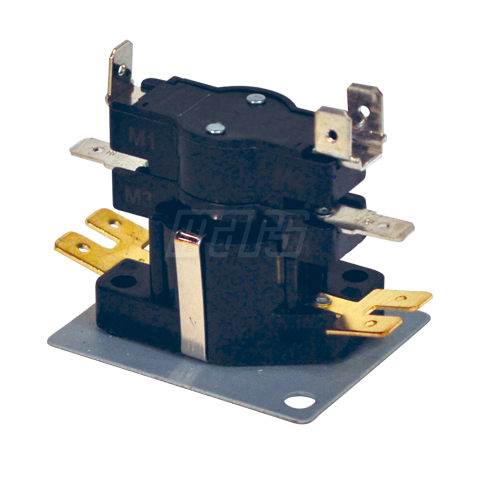

Electric Heat Sequencer WR 24A52-1 On 1-60 Off 1-45

Electric Heat Sequencer WR 24A52-1 On 1-60 Off 1-45

Function:

This is a Heat Sequensor for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.

Replaces Old Part #s:

A-1 Components5703

White Rodgers24A52-1

HoneywellR8330J

Klixon60000EOM

SupcoQ115

Therm O Disc15SH1309832   309573

WatscoTDR-20
