Yellow Jacket 40815 Refrigeration System Analyzer

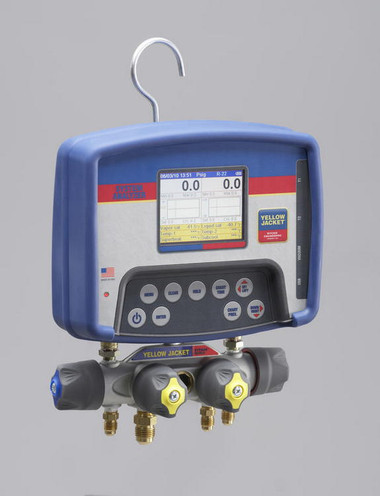

The Yellow Jacket 40815 Refrigeration System Analyzer features a full color graphics display and color-coded diagnostics for intuitive, easy reading.

The display reads in analog, digital or a combination of both, and monitors two pressures, two live temperatures, subcooling and superheat, and saturation temperatures (liquid and vapor) for 84 refrigerants.

The refrigeration system analyzer comes standard with the TITAN 4-valve manifold, an external, replaceable vacuum sensor and a blow-molded instrument case.

No other refrigeration system analyzer on the market today offers all of these features in one unit.

Features:

• LCD display with adjustable brightness and contrast, protected by an anti-glare, scratch resistant lens
• 84 NIST refrigerant profiles included (upgradeable via USB for new refrigerants)
• Built-in pressure/temperature chart reference screen for all refrigerants
• Built-in full scale vacuum sensor reads deep vacuum down to 10 microns
• Dual "K-Type" temperature-compensated sensor ports allow for simultaneous suction and liquid readings
• High accuracy and resolution pressure transducers for fast and sensitive leak detection
• Provides real-time pressure data in selectable time increments: 0.1, 0.2, 0.5, 1 and 2 seconds
• Displays and records max/min pressures
• Data logging for onscreen review or USB export to PC to generate performance/Excel work reports
• Tracks and exports date and time, useful for data logging
• Elevation may be entered manually for accurate, automatic pressure compensation
• Selectable "auto power off" and "power saving mode"
• Low battery indicator
• 360° swivel hook stows away when not in use
• Highly weather resistant, glass fiber reinforced, engineering grade thermoplastic housing—fully gasketed for water and duct resistance
• One-year warranty
• Made in the U.S.A.

Specifications:

• Pressure sensing resolution (low and high sides):
  – 0.1 psi, 0.01 bar, 1 kPa, 0.1 MPA, 0.01 kg/cm²
• Pressure sensing accuracy:
  – 0.5% of full scale at 25°C
  – 1% of full scale at 55 to 130°F
  – 2% of full scale -40 to 120°C
• Working pressure (maximum measurable pressure):
  – Low side: 0-350 psia
  – High side: 0-700 psia
• Proof pressure (low and high sides): 1000 psi
• Proof pressure (low and high sides): 1500 psi
• Temperature sensor range: -100 to 600°F (-73 to 315°C)
• Temperature display resolution: 0.1°F or C
• Temperature accuracy: +/-1.8°F (+/-1°C)
• Vacuum display resolution:
  – Shows two most significant digits in microns (25xxx-10xxx, 99xx-10xx, 99x-10x, 99-10)
  – Other units are direct conversions from the micron value
• Vacuum accuracy: 20% of reading
• Operational temperature: -4 to 122°F (-20 to 50°C)
• Storage temperature: -20 to 170°F (-29 to 77°C)
• Dimensions: 8.3” W x 6.7” H x 3.6” D (21 cm x 17 cm x 9 cm) excluding manifold
• Weight: 3.2 lb (1.45 kg) excluding manifold
• Power: AA batteries (8); alkaline, NiCd, NiMH, A-A Lithium, Li Ion, Li Pol (approximately one day of continuous operation with fresh or healthy rechargeable batteries)

**Includes Hoses**
