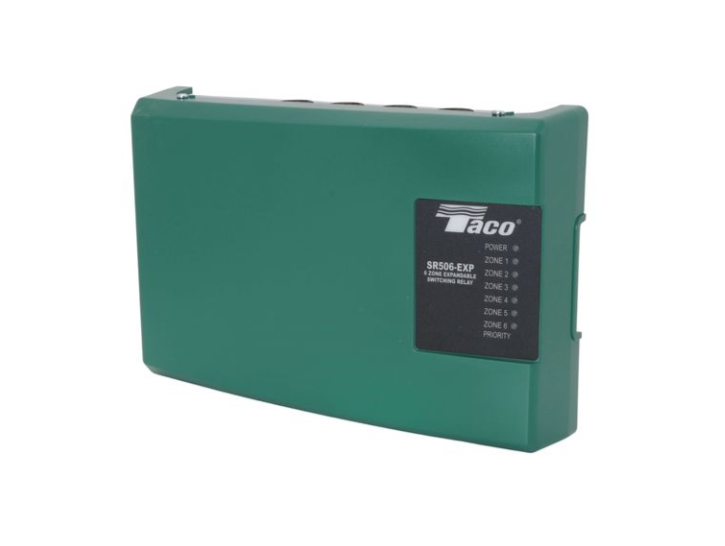

Taco SR506-EXP-4 Pump Switching Relay w/ Power Port

Taco SR506-EXP-4 Pump Switching Relay w/ Power Port

Taco SR506-EXP Pump Switching Relay with Priority and Power Ports activates a 6-zone hot water hydronic heating system. The single zone switching relay should be standard equipment for every installer. No matter what type of job, our single zone switching relay replaces every brand made by every manufacturer, and will even fit into the existing metal enclosure without rewiring incoming connections. The single zone switching relay is UL and CSA listed, uses a standard "ice cube" replaceable relay and is compatible with conventional and programmable thermostats. External indicator lights provide instant diagnostic feedback, making a snap of service calls or new installation start-ups.

Energy Saving Functions

• External Indicator Lights
• Universal Replaceability
• Snap-in PC Board
• Simplified Wiring
• Fully Enclosed Snap-Out Relays
• Fuse Protected (with spare)
• Isolated End Switch
• 24 Volt Power Input or Output Terminal
• 100% Factory Tested
• Contractor Friendly PC Board Layout
• Universal Thermostat Compatibility
• UL and CSA Approved
• Made in the USA

Additonal EXP Features:

• One Add-on Power Control Plug
• Premium Sealed Relays
• Expandable to 20 Zones
• Interface with all -EXP Multi-Zone Controls
