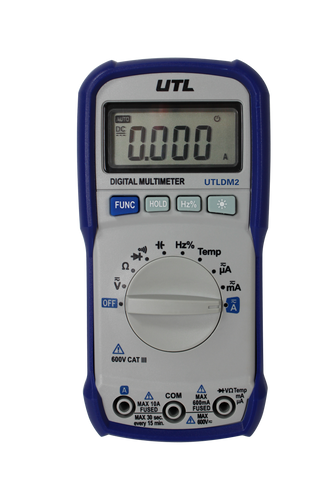

UEI UTLDM2 Auto Ranging Digital Multimeter

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
SKU:
UEID38
Availability:
Usually ships within 24 hours

Temporarily Out of Stock

 Product Description


Features
  • CAT III 600V
  • C-ETL-US Certification
  • 6000 count display
  • Auto Ranging
  • 600V AC/DC
  • 10A DC
  • 1 Year Limited Warranty
Functions
  • DC Voltage 600mV ~ 600V
  • AC Voltage 6V ~ 600V
  • AC/DC Current 600μA ~ 10A
  • Resistance 600Ω ~ 60MΩ
  • Frequency 9.999Hz ~ 10MHz
  • Duty Cycle 0.1 ~ 99.9%
  • Capacitance 6nF ~ 60mF
  • Diode
  • Temperature -4ºF ~ 1832ºF
  • Continuity

General Specifications
  • Operating Category: 600V CAT III, pollution degree: 2.
  • Operating Elevation (< 2000m)
  • Operating Conditions: 32~104ºF(0~40ºC), <80% RH (do not use meter when temperature <10ºC).
  • Storage Conditions: 14~140ºF (-10~60ºC), <70% RH (remove the battery).
  • Temperature Coefficient: 1xAccuracy/ºC (<18ºC or >28ºC).
  • Maximum Voltage between measurement end and ground: 600V DC or 600V AC RMS.
  • Fuse productions: mA Grade: fuse F600mA/600V and 10A Grade: fuse F10A/600V
  • Sampling rate: about 3 times/second
  • Display: 3 3/4 bits of digit LCD display
  • Power supply: 9V battery
Includes
  • Digital Multimeter
  • Test Leads
  • Thermocouple
  • 9V Battery
  • Manual
