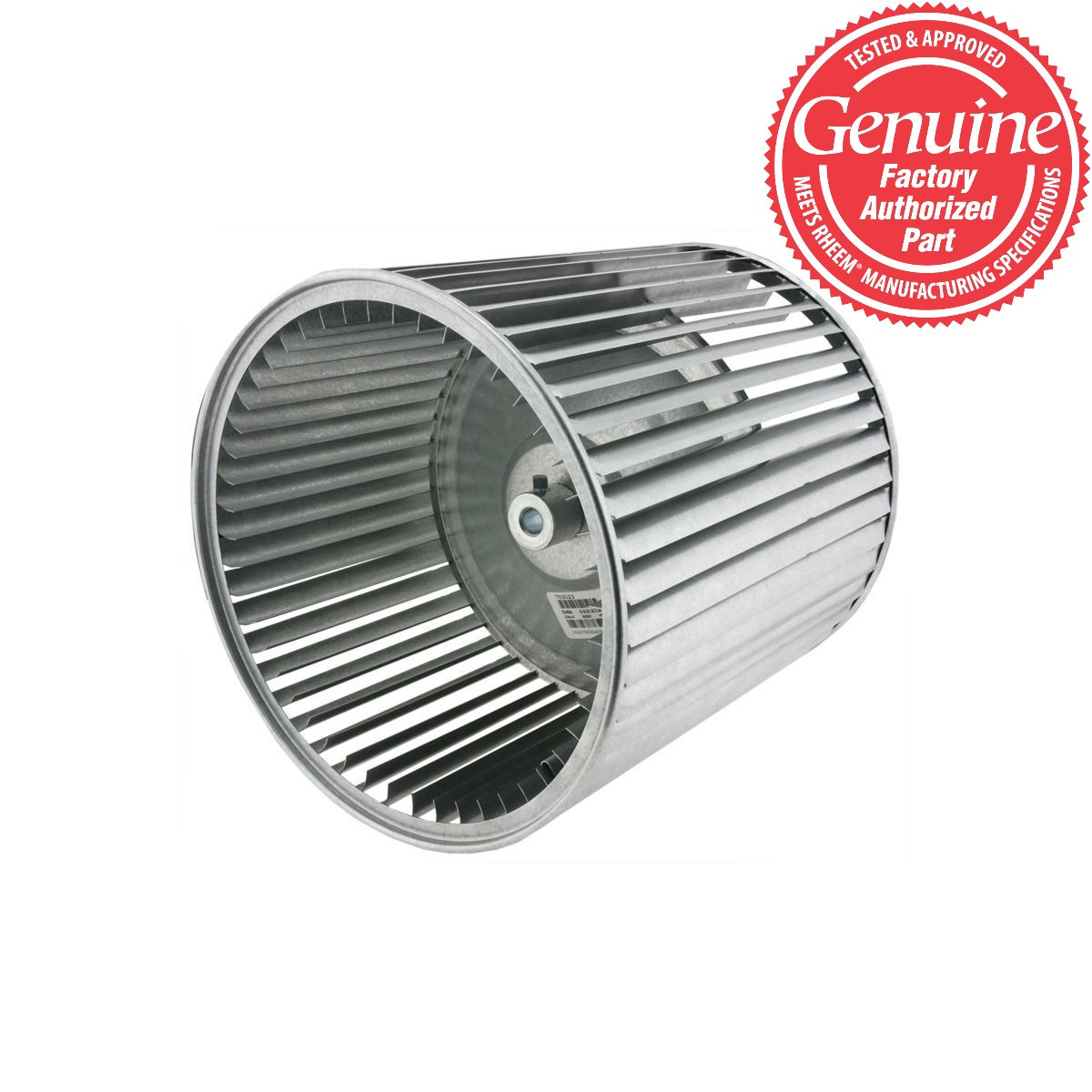

10X10X1/2" CW Blower Wheel 703023 Rheem Ruud
Replaces:
703013
Technical Data
- Overall Diameter Dim. D (in.): 10-5/8
- Overall Width Dim. W (in.): 10-11/16
- Nominal Size (in.): 10 x 10
- No. of Blades: 48
- Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
- No. Set Screws: 1
- Outside Edge of Disc to Outside End of Hub Dim. A (in.): 2
- Hub Length Dim. B (in.): 1-1/8
- Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 4-11/32
- Keyway (in.): None
- Rotation Direction (Facing Hub): CW
- Disc Shape (Hub side): Convex
Used on:
RHKA4821, RHKL3821, RHKL4821, RHLA4821, RHLL3821, RHLL4821, SHLL6021, RHSA4221, RHSA4821/24, RHSL4221, RHSL4821/24, SHSL6021, AHLA4821, AHLL4821, AHSA4221, AHSA4821, AHSA4824, AHSL4221, AHSL4821, AHSL4824
