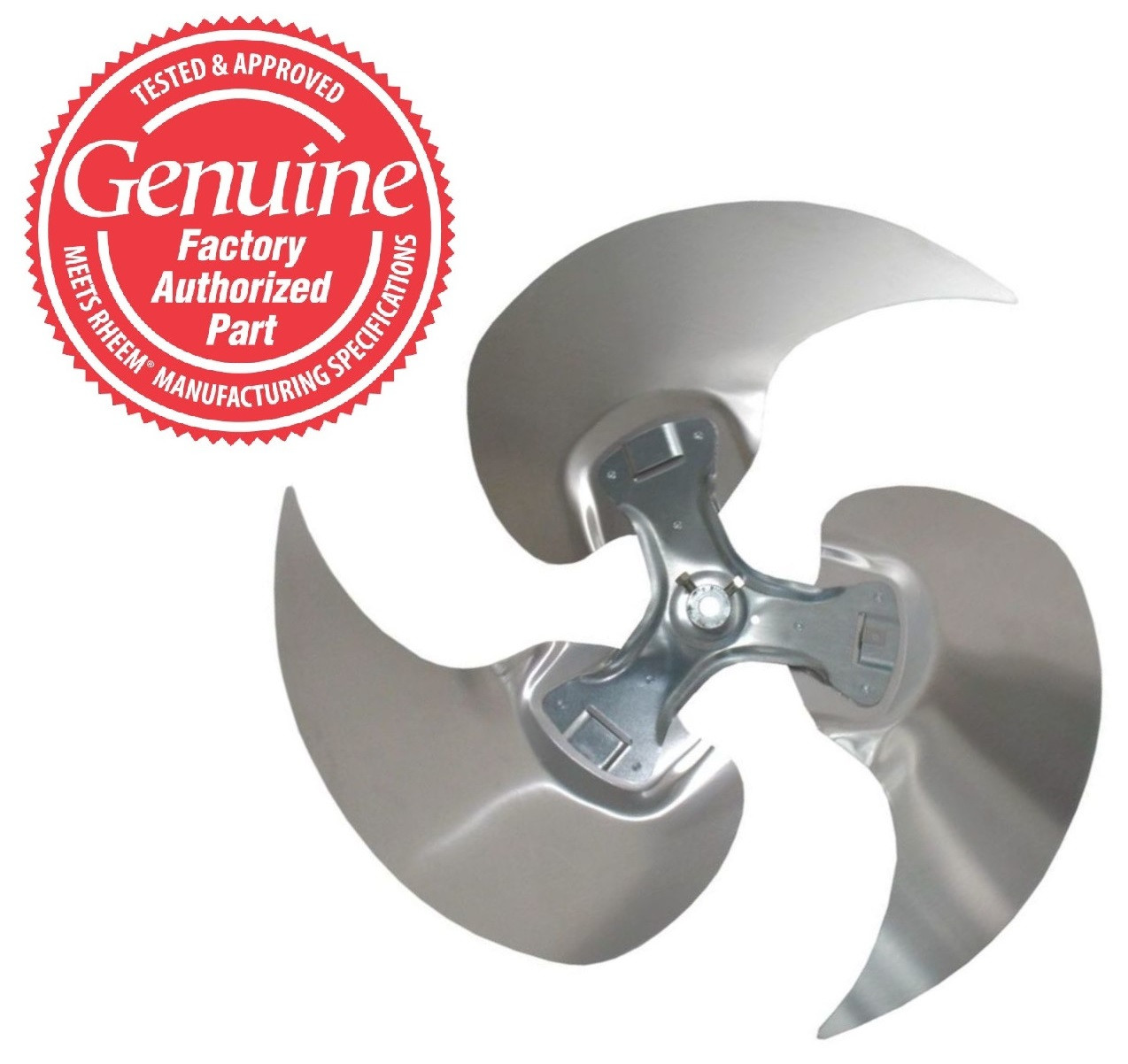

Rheem 70-102345-01 Fan Blade 24" 3 blade 26 degree CCW

Fan Blade 24" 3 blade 26 degree CCW 70-102345-01 Rheem / Ruud

Technical Data:

• Number Of Blades: 3
• Overall Diameter (Inches): 24
• Rotation (Air Discharge Side): CCW
• Pitch (Degrees): 26
• Bore Diameter (Inches): 1/2
• Hub Location: Inlet Side

Replacement Information:

• 70-100580-09

Used on:

13QJA42, 13QJA48, 13QJA60, 13SJ48, 13SJ60, RJNL-A072, RJNL-C072, RQNMA042, RQNMA048, RQNMA060, RQPMA042, RQPMA043, RQPMA048, RQPMA049, RQPMA060, SJNL-A072, RQRMA042, RQRMA048, RQRMA060, SSNJA048, SSNMA048, SSNMA060, SSNMA072

Note:The fan blade listed below is of a new design to further enhance sound characteristics and may be substituted for the above fan where applicable.

RQNJA042, RSNJA048, RSNJA060, RSNMA048, RSNMA060, RSPMA048, RSPMA060

Note:The fan and motor part numbers below may be different than originally supplied on the equipment.This fan and motor combination was changed to enhance the sound characteristics of the unit.Fan blade should be positioned on the shaft such that the highest point on the blade is two inches below the uppermost point on the motor housing while allowing a minimum of 1/8 inch clearance between the motor and fan.CAUTION: When replacing either the fan or the motor, both components must be matched in the combination shown below.In order to ensure correct performance, do not change one component only without verifying that the combination is correct.

(RQNJA042, 51-100998-25), (RQNJA048, 51-100998-25), (RQNJAB060, 51-100998-25), (RSNJA048, 51-100998-25), (RSNJA060, 51-100998-25)
