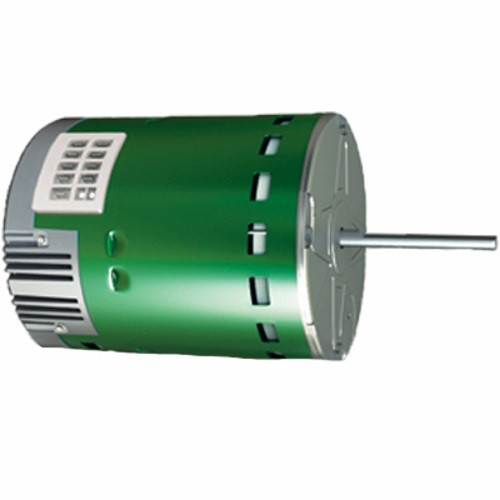

Genteq 6105E Evergreen Motor 1/2 HP 115V

• Multi-speed, constant torque, brushless DC motor
• Automatically determines motor rotation direction
• 5 discrete speeds using 24VAC (3 using 18VDC)
• Operating speed range of 600-1200 rpm
• NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch
• long ½ inch diameter shaft
• UL and CSA recognized component.
• Standard ECM Replacement (Does not replace premium ECM constant airflow products such as Eon, 3.0, 2.3, and 2.5)
• Maintains ECM-level Efficiency up to 80%
• Soft Start and Off Ramp for quiet operation
• Electronic Overload Protection
• Includes wiring harness

Evergreen EM
Designed to replace OEM constant torque standard ECM indoor blower motors such as X13 or equivalent competitor models with 24 VAC speed taps [115 or 208-230VAC applications]

Evergreen EM is a drop in replacement for Constant Torque ECM such as X13 or equivalent competitor models with 24vac speed taps. With no programming requirements it's ready when you need it at your local HVAC distributor or on your truck. With no complex wiring, you will get the job done quickly.

RELIABILITY

• Encapsulated electronics
• Electronic Overload Protection
• 4kv surge protection
• Two year warranty
• UL and CSA recognized component

BENEFITS

• Replaces X13 and similar Constant Torque ECM with 24vac speed taps
• Pre-programmed for truck stock, ready to use out of the box
• (5) 24vac speed taps (Low-High)
• Compatible with OEM harness
• No complex wiring or configuration
• Automatically determines motor direction using Genteq's Rotation Sensing Technology
• Maintains system efficiency and performance
• Soft Start and Off Ramp for quiet operation

MULTI-PURPOSE

• Replace/upgrade PSC motors in applications that DO NOT require on/off delays such as Variable Air Volume (VAV), Fan Filter Units (FFU), A/C or heat pump only air handlers or package units. (Refer to installation manual for more details)
• (5) 24vac speed taps (Low-High)
• (3) 18vdc speed taps (Low-Med-High)
• PWM capable (600-1200rpm operating range
• Improves air balancing
• Provides precise speed selection
• 0-10vdc capable with separate harness
• Low voltage signal harness provided with motor
