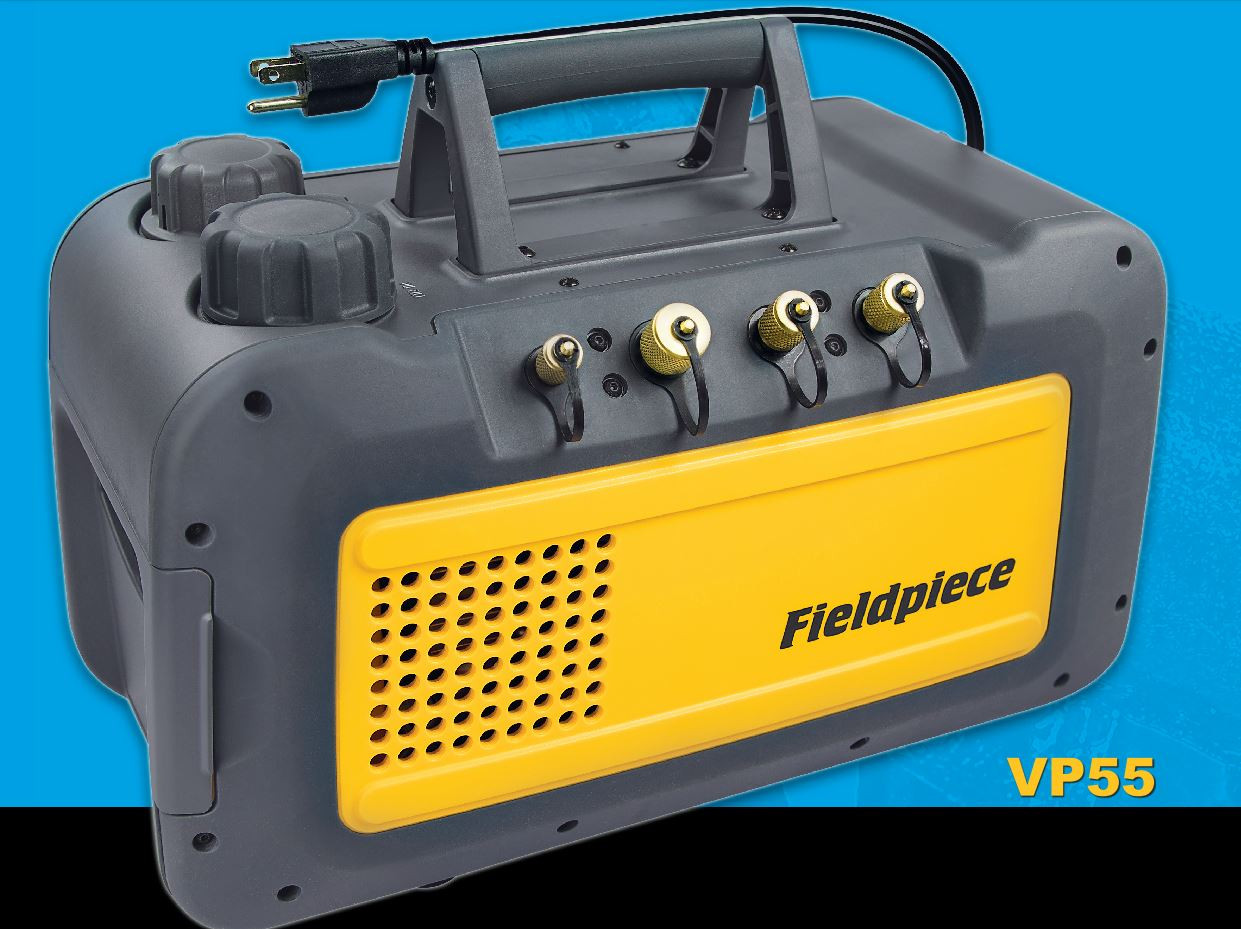

Fieldpiece VP55 Two Stage 5 CFM Vacuum Pump

Leading the Charge

With vacuum pumps and oil

• On-the-fly oil change in seconds
• Sturdy base to stay upright
• Water resistant to withstand direct rain
• Backlit oil reservoir to view condition of oil and system
• 5 CFM (VP55)

Superior Performance
Performing a proper system evacuation prior to charging directly increases the expected life and efficiency of the system. Fieldpiece vacuum pumps provide a new view at system evacuation.

Fieldpiece is leading the charge in properly performing system evacuation with its new vacuum pumps with RunQuick Oil Change System. Available in an 8 CFM DC motor (model VP85 NOT INCLUDED), or in a 5 CFM AC motor (model VP55 INCLUDED), these revolutionary pumps make evacuation easier and faster.

Good oil is a key ingredient of every evacuation. Clearly view your pump oil through the huge oil reservoir window to see the condition of the oil, and the system. When it’s time to change the oil, it’s quick, clean, and easy. With the RunQuick oil change system you can replace the oil in under 20 seconds, even while the pump is running without losing vacuum.

Plus the extra wide base helps prevent tipping and spilling oil. Four in-line ports give you tidy hose routing for three different size hoses. Place the cord on the handle for tangle-free storage and easy hoisting.

VP55 Features

• 4 In-line Ports (1) 1/4" (2) 3/8" (1) 1/2"
• 15 Micron Ultimate Vacuum
• Two Stage Pump
• Gas Ballast Switch with LED
• Exhaust Threaded for Garden Hose
• Lightweight, Powerful Motor
• Quiet Fan-Cooled Operation
• Heavy Duty Rubberized Construction
• Stable Base
• Power Cord Storage
• Operation in the Rain (IP24)

RunQuick Oil Change System

• No mess, 20 second oil change
• No vacuum loss
• Wide mouth fill port
• Only 8 ounces
• Large, Clear Oil Tank
• Clearly see condition of oil and system
• Bright blue backlight

Specifications

• Flow Rate: 5CFM
• Backlight: Blue LED
• Oil Capacity: 8 oz (237 mL)
• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
• Oil Drain: Ball Valve
• Port Sizes: (1) 1/4" (2) 3/8" (1) 1/2"
• Compressor: Rotary vane, two stage
• Motor: 1/3 HPAC, 3440 RPM
• Power Source: 108 to 130 VAC @ 60Hz
• Max Current Draw: 8.0 AAC
• Ultimate Vacuum: 15 microns
• Dimensions: 9.25" x 12.4" x 17.7" (235mm x 315 mm x 450 mm)
• Weight: 30 lbs without oil (12.7kg)
• Patent: Patents pending
