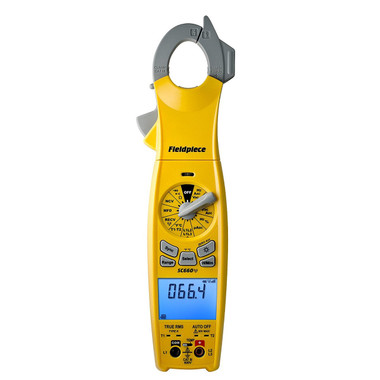

Fieldpiece SC660 Wireless Swivel Clamp Meter

Hover over image to zoom

  • Image 1
$314.50
SKU:
FIEL174
Availability:
Usually ships within 24 hours

Temporarily Out of Stock

 Product Description

Packed to the Gills
The Most Advanced Meter on the Market

  • Wireless measurements
  • Job Link Mobile System compatible
  • Three phase rotation test
  • Dual temp for Delta T calculations
  • Display, dial and jaw lights
  • Inrush and True RMS

Good luck finding something the SC660 doesn’t do. See the dial in the dark, use the AC/DC swivel clamp, measure dual temp, or find phase rotation.  Your meter, loaded up for HVACR:

Job LinkTM Mobile System Capability via JL2 Transmitter

  • Send and save electrical measurements to Job LinkTM mobile system app via the JL2 long range transmitter for professional reporting.  Plus, calculate power (kW) and system efficiency (EER and SEER) for in depth understanding of system performance in real world conditions. (SDP2 needed for system efficiency calculations.)



Swivel Head with LED Flashlight

  • Open the clamp to illuminate the wire bundle you’re hunting. Rotate the clamp 180° to see the display easier. The clamp’s claw grabs the wire you want to measure.


Electrical Testing for HVACR

  • True RMS readings through the clamp or leads. Capture starting amps with Inrush.


Test 3-Phase Power Test

  • Conveniently test phase rotation without carrying around an extra meter or extra lead. With the included alligator test lead connected to L1, you can determine phase rotation with one hand.


Trusted Dual-Temp

  • Reliable temperature in fast changing environments. View two thermocouple inputs at the same time, or check delta T across the evaporator. Select T1 & T2, T1 & T1-T2, or T2 & T1-T2.


Huge Backlit Display

  • View two measurements so large you can read them at a distance and in the dark.


Rugged Dual Display

  • Broad temperature range tolerance allows for testing in freezers and on rooftops.


Capacitance

  • Test motor start and run caps. Determine when a capacitor needs to be replaced.


Wireless Testing

  • Send measurements to the Job LinkTM mobile system app via JL2 transmitter. Or view measurements from other compatible tools (ET2W, EH4W, SC57, LT17AW, SC460, SC660) across the jobsite LIVE.


Magnetic Hanger

  • Hanging strap flips out to keep the meter locked in place.


Probe Storage

  • Snap the leads into the back of the meter. No more tangles or probe tip pricks.


Dial Backlight

  • View the dial in low light.


Safety + Convenience

  • Use non-contact voltage to check if the wire is hot or not. Use the probe holder on the clamp to test voltage more safely with one hand. Test voltage hands-free using the magnetic hanger.

What's Included

  • SC660 Wireless Clamp Meter
  • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
  • ASA2 Alligator Clips
  • 2 ATB1 Type K Thermocouples
  • 2 Velcro Straps
  • 9V Alkaline Battery (not installed)
  • ANC7 Padded Case
  • Operator's Manual
