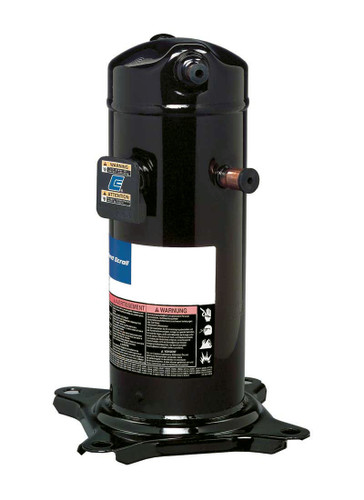

Copeland Scroll Compressor 28400 BTU R22 208/230-1

Image 1

Hover over image to zoom

  • Image 1
SKU:
ZR28K5EPFV800 RHE

Temporarily Out of Stock

 Product Description



  • This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately.
  • The compressor rating label for model ZR28K5E-PFV-800 may read ZR28K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects.



Capacity (BTU/HR): 28400
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Freq. (Hz.): 60
Run Capacitor (uF/V): 45/370
Start Kit: SK-A1
Kick Start: 42-TO5
Start Relay P/N: 42-25105-01
Start Capacitor (uF/V): 88-106/330
Start Capacitor Part Number: 43-17075-04
Rated Load Current (A): 15.7
Max. Continuous Current (A): 22.0
Locked Rotor Current (A): 75.0
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Soundwrap (OEM): 68-23427-26
Refrigerant Oil: POE (85-32CST)
Suction Line Location: 2
Suction Line Height (in.): 10-1/8
Suction Line Configuration: Stub Out
Suction Line Size (in.): 3/4
Discharge Line Location: 3
Discharge Line Height (in.): 14-3/16
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 15-5/16
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2



Model:Part:Page:
RPPC55-100835-02Coil Parts, Compressor Group
RAND55-100835-02SCompressor Group 018-042
RPNE55-100835-02SCompressor Group, Accessories
RQKJ55-100835-02SCoil Parts, Compressor Group
RQMJ55-100835-02SCoil Parts, Compressor Group
RQNA-B55-100835-02SCompressor Group
RSKJ55-100835-02SCoil Parts, Compressor Group
RSMJ55-100835-02SCompressor Group
SAKB55-100835-08Compressor Group 018-042
RAKB55-100835-08Compressor Group 018-042
RAMC55-100835-08SCompressor Group
RAND55-100835-08SCompressor Group 018-042
RRNA-B55-100835-08SCompressor Group
RSKJ55-100835-08SCoil Parts, Compressor Group
RSMJ55-100835-08SCompressor Group
RSNA-B55-100835-08SCompressor Group
FAFF55-21737-04Compressor Group
RAJB55-21737-04Coil Parts, Compressor Group
SAKA55-21737-04Compressor Group 018-030
RPKA55-21737-04Compressor Group (1)
RAMA55-21737-04SCompressor Group
RPLA55-21737-04SCompressor Group
RSMA55-21737-46Compressor Group
RRMA-A55-21737-46Coil Parts, Compressor Group
URMA-A55-21737-46Coil Parts, Compressor Group
RRKA-A55-21737-70Compressor Group
RSKA55-21737-70Compressor Group
URKA-A55-21737-70Compressor Group
RAMB55-23139-46Coil Parts, Compressor Group, Accessories
RAMA55-23139-46SCompressor Group
RAMC55-23139-46SCompressor Group
RANC55-23139-46SCompressor Group, Accessories
RAPA55-23139-46SCoil Parts, Compressor Group, Accessories
RSMA55-23139-46SCompressor Group
RRMA-A55-23139-46SCoil Parts, Compressor Group
RRNA-A55-23139-46SCoil Parts, Compressor Group
RSNA-A55-23139-46SCoil Parts, Compressor Group
URMA-A55-23139-46SCoil Parts, Compressor Group
RPLA55-23140-11Compressor Group
RAKA55-23140-11SCompressor Group 018-030
SAKA55-23140-11SCompressor Group 018-030
RPLB55-23140-11SCompressor Group, Accessories
RPKA55-23147-02Compressor Group (1)
SAKB55-23155-05Compressor Group 018-042
RAKB55-23155-05Compressor Group 018-042
RAKA55-23155-05SCompressor Group 018-030
SAKA55-23155-05SCompressor Group 018-030
RALC55-23155-05SCompressor Group

Replaces:
55-100835-02
55-21737-70
55-23155-05
55-100835-08S
55-23140-11
ZR28K5-PFV-800
8000-762
55-23139-46
55-23147-02
55-23155-05S
55-100835-08
55-21737-04
55-ZR28K5-PFV-800
55-100835-02S
55-21737-46
ZR28K5-PFV-7M3
55-23140-11S
55-23139-46S
55-21737-04S
ZR28K5E-PFV-7M3
