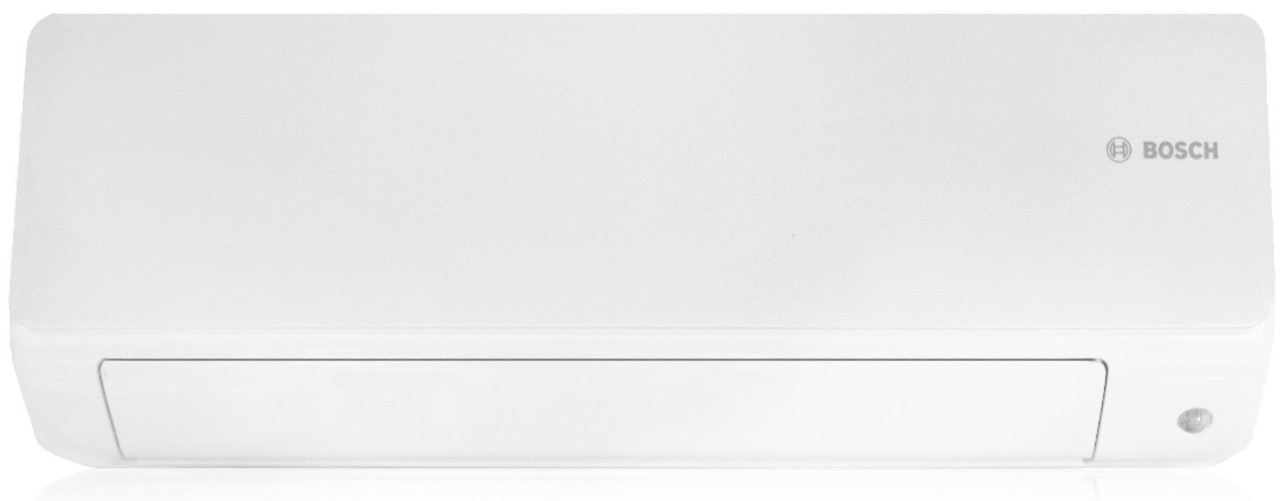

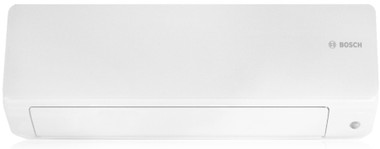

Bosch BMS500-AAU009-1AHWXC 8-733-956-175 Minisplit 9k BTU Universal Wall Mounted Air Handler 230V

Image 1

Hover over image to zoom

  • Image 1
SKU:
8733956175

Temporarily Out of Stock

 Product Description

Bosch Mini Split 9k BTU Universal Wall Mounted Air Handler 230V, BMS500-AAU09-1AHWXB

The Bosch Climate 5000 ductless series provides simple installation, maintenance, and cleaning. Shorter service times and high quality means minimizing money spent while maximizing comfort and peace-of-mind. The Climate 5000 system utilizes a combination of efficient technologies to reduce electricity usage and lower your electric bill.

• Silent mode - Super quiet with sound levels as low as 20 dBA
• Turbo mode to quickly create a comfortable temperature
• Deflectors move automatically in all directions for a balanced airflow covering every corner of the room
• Follow me feature - Provides individualized comfort
• Easy installation with simple maintenance
• Extra Simplified, Award-winning Design
• Limited Residential Warranty - 5 years replacements parts (7 years for the compressor)

Weight 25.35
ERP ID 430792
Brand Bosch
Circuit Breaker - Max Amps 15
Circuit Breaker - Min Amps 3
Cooling Capacity 9000
Cubic Measurement 2.0465
Cycle/Hertz 60 Hz
EER 15
Energy Star Rated Yes
Equipment Type Heat Pump
Height 11.69
Length 33.39
Liquid Line Size (OD) 1/4"
Mounting Type Wall-Mount
Product Family BMS
Rated Current Amps 3.23
Rated Load Amps 2.61
Refrigerant R-410A
SEER 25.5
Sound Level (dBA) 23
Suction Line Size (OD) 3/8"
Tonnage 0.75
UL Listed Yes
UOM EA
UPC 052575026732
Voltage 208-230 VAC
Width 9.06
