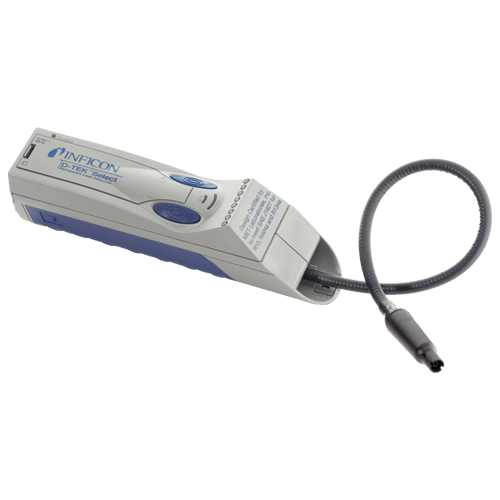

Inficon 712-202-G1 D-TEK Select Infrared Refrigerant Leak Detector

Hover over image to zoom

  • Image 1
Usually ships within 24 hours

 Product Description

New Page 1

Features & Applications:

This next-generation Inficon D-TEK Refrigerant Leak Detector uses an innovative infrared absorption sensing cell that is extremely sensitive to all refrigerants and only refrigerants.

D-TEK Select maintains that sensitivity over time for consistent, accurate and reliable performance, even with the newer refrigerant blends. Best of all, the sensing cell lasts for approximately 800 hours, lowering your cost of ownership and improve job site productivity.


  • 0.10 oz (3 gm)/year sensitivity
  • Equally sensitive to all refrigerants, including R-22, R-134a, R-404a, R-410a, R-507 (AZ-50) and all CFCs, HCFCs and HFCs
  • 800-hour infrared cell life for low cost of ownership
  • Infrared cell does not weaken over time, so response remains consistent and accurate
  • Infrared cell cannot be overloaded or "poisoned" by exposure to large amounts of refrigerant
  • Selective to refrigerants only; will not react to smoke, humidity, airflow or temperature changes
  • High-efficiency air sampling pump provides quick response and quick clearing ("zeroing")
  • On-board diagnostics indicate charging status and warn of low battery or infrared cell failure
  • NiMH power stick is environmentally friendly, won't corrode, and provides greater charging capacity
  • Includes hard plastic case, NiMH power stick, 12V and 120V adapter/recharger, tip filters and infrared cell

Made with pride in the USA

Spec Summary:
Base unit includes: Infrared cell, NiMH power stick, spare filters, 110VAC adapter with 6' cord, 12V adapter with cigarette lighter plug, and a hard plastic carrying case.

Minimum sensitivity to R-12, R-134a, R-404a: 0.10 oz/yr (3 gm/yr)

Controls: Power: on/off Sensitivity: high/low

Power: NiMH power stick

Battery life:
6.5 hours

Charging options:
110VAC adapter with 6' cord
12V adapter w/cigarette lighter plug

Weight with power stick: 0.19 lb (0.54 kg)

Probe: Chrome-plated flexible metal, approx. 17" (43 cm) long

Recharger: Built in

Operating temperature: 32 to 122°F (0 to 50°C)

Storage temperature: 14 to 140°F (-10 to 60°C)

Case material: Self-extinguishing, per UL94HB

Certifications: CE Marking Power Safety and EMC. SAEJ1627
