Honeywell Y8610U6006 Intermittent Pilot Retrofit Kit

Product Specifications

Dimensions (in.)

3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep

Dimensions (mm)

100 mm high x 138 mm wide x 67 mm deep

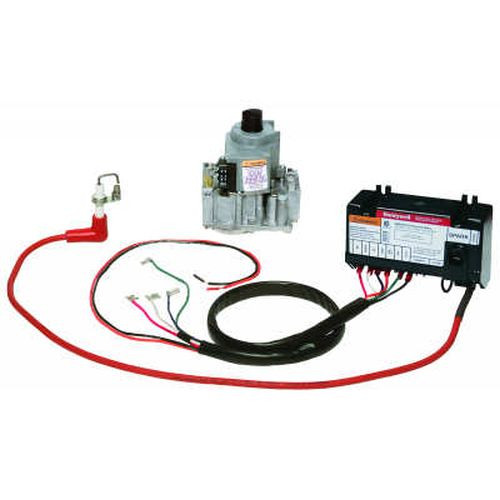

Includes

VR8304M3558 (1/2 x 3/4; 3.5" setting; 270kBtu/hr at 1 in. p.d.)

Electrical Ratings

24 Vac

Frequency

60 Hz

Flame Failure Response Time (sec)

2.0 sec

PrePurge

0 or 30 seconds

Ambient Temperature Range (F)

-40 F to +165 F

Ambient Temperature Range (C)

-40 C to +74 C

Ignition System Type

Intermittent Pilot

Ignition Sequence

Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place

Typical Gas Control

VR8204, VR8304

Type of Gas

Natural or LP

Flame Sense

Single Rod or Two Rods

Ignition Source

Internal high voltage spark generator

Ignition Trials To Lockout

continuous retry

Lockout Timing

15 or 90 seconds

Ignition Trial Time (sec)

15 or 90 seconds

Maximum Valve Load @ 24 Vac (Amps)

1A Pilot, 2A Main @ 24Vac

Typical Ignition Hardware

Q345, Q3451
