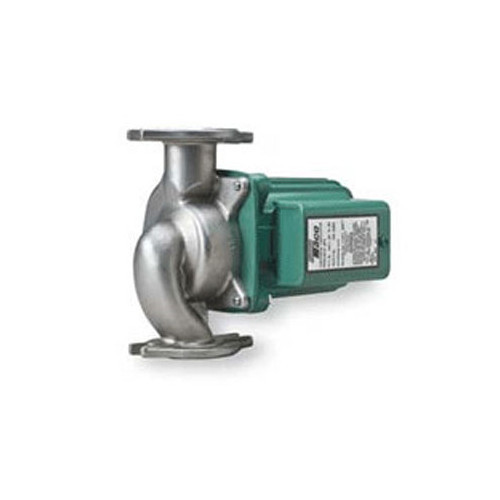

The High Velocity series Taco 0011 Cartridge Circulator is designed for high flow / medium head applications in large residential / light commercial hydronic heating, radiant heating, and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the buildup of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0011 is ideal for high efficiency jobs where space is a premium.
The Taco 0011 is specifically designed for high head / medium flow applications in large residential / light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The Bronze or Stainless Steel 0011 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.
Performance Data
Flow Range: 0-28 GPM
Head Range: 0-30 Feet
Minimum Fluid Temperature: 40º F (4º C)
Maximum Fluid Temperature: 230º F (110º C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4â€ÂÂ, 1â€ÂÂ, 1-1/4â€ÂÂ, 1-1/2†Flanged
