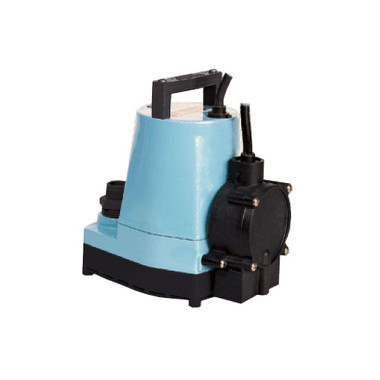

Little Giant 505350 5-ASP-LL Water Wizard Pump

Automatic/Manual submersible utility pump with oil-filled motor and epoxy coated cast aluminum housing. For
commercial, industrial and home applications where liquid must be transferred or recirculated. Pumps down to 1/8" in
manual mode operation. This 1200 GPH pump features a 1" FNPT discharge with garden hose adaptor, 26.3' shut-off
head capability, and screened inlet.

Features:

• Automatic or manual operation
• Epoxy coated die-cast aluminum housing
• Oil-filled motor
• 26.3' maximum lift
• 380 watts
• 1" FNPT discharge
• Thermal overload protection
• ASP On level: 6" to 9", Off level: 1" to 4"
• ASP-LL On level: 2" to 3", Off level: 1/2" to 1 1/2"
• Piggyback diaphragm switch
• For submersible use only

Construction:

Motor -1/6 HP oil filled
Intermittent Liquid Temp.- up to  120°F
Intake - Screened
Discharge - 1" MNPT
Housing - Epoxy coated cast aluminum
Cover - Epoxy coated cast aluminum
Volute - Nylon
Impeller - Nylon
Shaft Seal - Viton
Screen - Nylon

Specifications:
