ICM803 Rapid Start Hard Start

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
SKU:
ICM803
Availability:
Usually ships within 24 hours

 Product Description

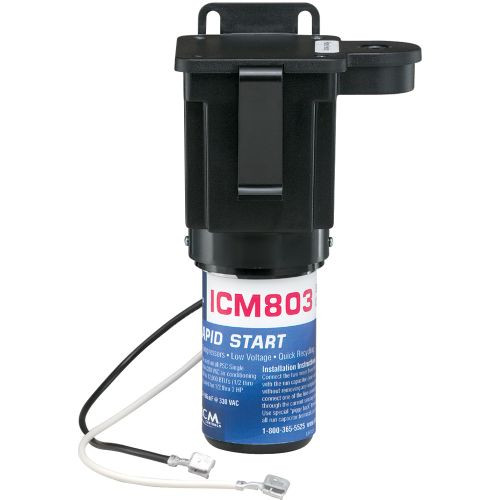

ICM803 Rapid Start Hard Start

Rapid Start® Hard Start with patented current sensing circuitry for precision boosts/drop out times; 2-wire installation; for 1/12 to 3 HP applications

Specifications:

    Ideally suited for: 1/12 thru 3 HP applications
    Capacitor: 88-106 Mfd., 330V
    Operating temperature range: -40°C to +65°C

  • Operates from 95-288 VAC
  • Maximum input voltage: 502VAC
  • Patented current sensing circuitry
  • Self-adjusting to voltage fluctuation
  • Easy to install, 2 wires, clip, or screw mounted
  • For scroll or reciprocating compressors
  • Solid-state circuitry
  • Boost starting torque
  • Disengages upon start
  • Intrinsically safe, fuse protected (fuse not user replaceable)
  • UL recognized
